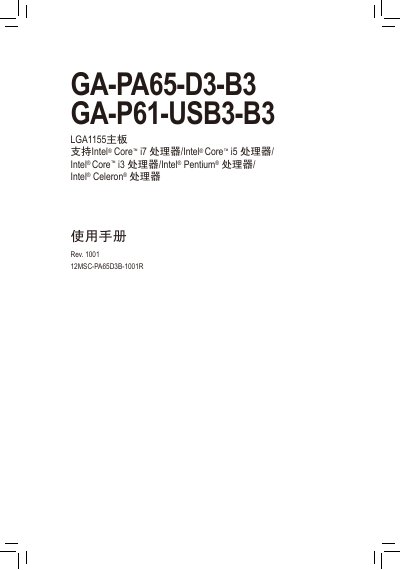

GA-PA65-D3-B3/GA-P61-USB3-B3 LGA1155 motherboard user manual, introduces the hardware installation and BIOS program settings of the motherboard.
This manual provides step‑by‑step instructions for installing the GA‑PA65‑D3‑B3 and GA‑P61‑USB3‑B3 LGA1155 motherboards, including CPU, memory, cooling fan, and expansion‑card installation. It also details BIOS configuration, power‑management settings, and troubleshooting tips.
Additional sections cover driver installation, unique Gigabyte features such as Xpress Recovery2, Q‑Flash BIOS updates, EasyTune, and the warranty/after‑sales service information for users in Mainland China and worldwide. This manual is written in Chinese.
| Supported CPUs | Intel® Core i7 / i5 / i3, Pentium®, Celeron® (LGA1155) |
|---|---|
| Chipset | Intel® H61 |
| Memory Slots | 2 × 1.5 V DDR3 DIMM, up to 16 GB total |
| Supported Memory Types | DDR3 1333/1066/800 MHz, non‑ECC |
| Network | Realtek RTL8111E Gigabit Ethernet (10/100/1000 Mbit) |
| PCI Express Slots | 1 × PCIe x16, 2 × PCIe x1, 3 × PCI |
The board supports Intel® Core i7, i5, i3, Pentium® and Celeron® processors for the LGA1155 socket.
It has two 1.5 V DDR3 DIMM slots that can hold up to 16 GB of memory in total.
