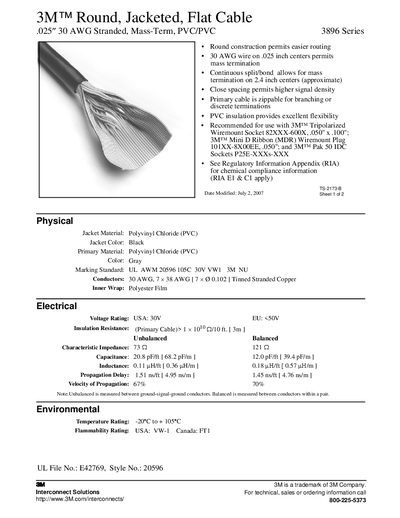

The 3M 3896 Series Round, Jacketed, Flat Cable is a 30 AWG stranded, mass-term, PVC/PVC cable. It has the following features: Round construction permits easier routing; 30 AWG wire on .025 inch centers permits mass termination; Continuous split/bond allows for mass termination on 2.4 inch centers (approximate); Close spacing permits higher signal density; Primary cable is zippable for branching or discrete terminations; PVC insulation provides excellent flexibility.
The 3896 Series cable features a round, jacketed design that simplifies routing and enables mass termination on 2.4‑inch centers. Its .025" 30 AWG conductors provide high signal density, and the PVC insulation gives excellent flexibility for branching or discrete terminations.
Technical specifications include a PVC jacket, 30 V (USA) / <50 V (EU) voltage rating, characteristic impedance of 73 Ω unbalanced and 121 Ω balanced, and a temperature range of –20 °C to +105 °C. The product complies with RoHS and other regulatory standards and is covered by a one‑year limited warranty.
| Jacket Material | Polyvinyl Chloride (PVC) |
|---|---|
| Voltage Rating | USA: 30V, EU: <50V |
| Capacitance | 20.8 pF/ft (unbalanced), 12.0 pF/ft (balanced) |
The cable is rated for 30 V in the USA and less than 50 V in the EU.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC.
