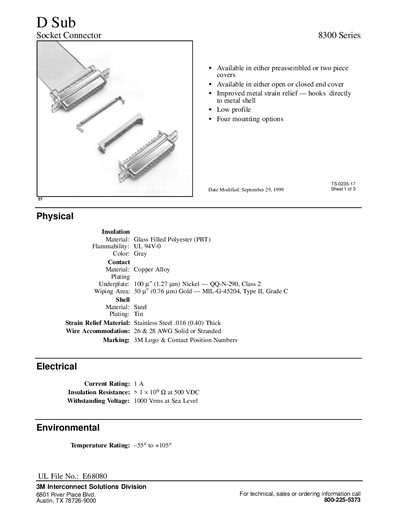

The 3M 8300 Series D Sub Socket Connector is available in either preassembled or two piece covers and is ideal for a variety of applications, including automotive, industrial, medical, and communications. The connector features a low profile, four mounting options, an improved metal strain relief and optional front-mount or two-piece covers.
The 8300 Series D Sub Socket Connector from 3M is offered with pre‑assembled or two‑piece covers and open or closed end covers. It features improved metal strain relief that hooks directly to the metal shell and a low‑profile design.
The connector supports a 1 A current rating, >1 × 10⁹ Ω insulation resistance at 500 VDC, and a withstanding voltage of 1000 Vrms. It operates from –55 °C to +105 °C and is available in four mounting styles, including front‑mount and rear‑mount options.
| Contact Plating | Nickel (QQ‑N‑290, Class 2, 30 µm) and Gold (MIL‑G‑45204, Type IL, Grade C) |
|---|---|
| Mounting Options | Four mounting options |
| Cover Types | Preassembled or two‑piece covers; open or closed end cover |
Four mounting options are provided.
