3M™ ElectroCut™ Film Series 1170 is a durable, transparent, colored film coated with a transparent, pressure-sensitive adhesive that is protected by a removable liner available in the following colors.
The ElectroCut™ Film Series 1170 is a durable, transparent, pressure‑sensitive film designed for electronic cutting machines. It is supplied in a range of colours (Yellow 1171, Red 1172, Orange 1174, Blue 1175, Standard Green 1176, Interstate Green 1177, Brown 1179) and can be applied over 3M reflective sheetings such as Engineer Grade, High Intensity Grade, Diamond Grade LDP and VIP.

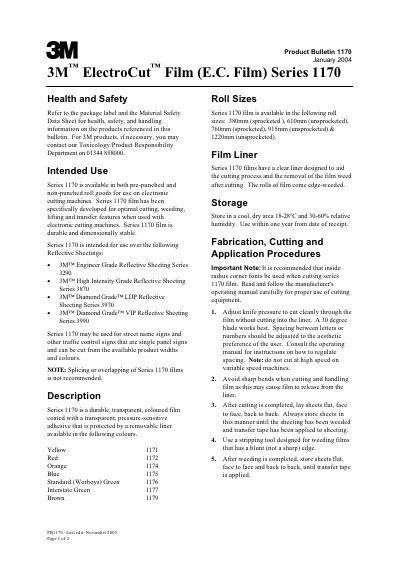

The bulletin outlines health‑safety references, storage conditions (18‑28 °C, 30‑60 % RH), recommended cutting tools (30° blade), handling tips, and the use of TPM‑5 clear transfer tape. It also notes that splicing or overlapping the film is not recommended and provides guidance on weeding, laminating, and removing transfer tape.
| Available colours | Yellow 1171, Red 1172, Orange 1174, Blue 1175, Standard (Worboys) Green 1176, Interstate Green 1177, Brown 1179 |
|---|---|
| Roll sizes | 380 mm (sprocketed), 610 mm (unsprocketed), 760 mm (sprocketed), 915 mm (unsprocketed), 1220 mm (unsprocketed) |
| Storage temperature | 18‑28 °C |
| Relative humidity for storage | 30‑60 % |
| Recommended knife angle | 30 degrees |
A 30 degree blade works best for cleanly cutting through the film.
No, splicing or overlapping of Series 1170 films is not recommended.
TPM‑5 Clear Transfer Tape is recommended for best results.
Store the film in a cool, dry area at 18‑28 °C and 30‑60 % relative humidity, and use within one year of receipt.
