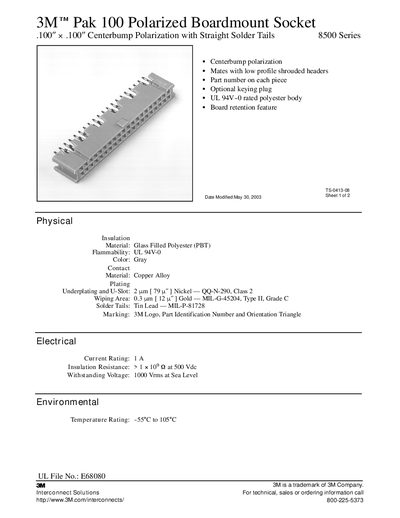

3M 8500 Series 3M Pak 100 Polarized Boardmount Socket is a board mount socket with center bump polarization and straight solder tails. It features center bump polarization, mates with low profile shrouded headers, part number on each piece, optional keying plug, UL 94V--0 rated polyester body and board retention feature.
The Pak 100 8500 Series is a board‑mount socket with a .100" x .100" center‑bump polarization and straight solder tails. It features a UL‑94V‑0 rated polyester (glass‑filled PBT) body, a copper‑alloy contact, and optional keying plug for secure mating with low‑profile shrouded headers.
Technical data include a 1 A current rating, insulation resistance greater than 1 × 10⁰ Ω at 500 V, and a withstanding voltage of 1000 Vrms. The connector operates from –55 °C to 105 °C and complies with UL 94V‑0 flammability standards. Part number TS‑0413‑08 and UL file No. E68080 identify the product for ordering and warranty purposes.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability Rating | UL 94V-0 |
| Color | Gray |
| Contact Material | Copper Alloy |
| Solder Tail Material | Tin Lead |
| Current Rating | 1 A |
| Insulation Resistance | > 1 x 10° Q at 500 V |
| Withstanding Voltage | 1000 Vrms at Sea Level |
| Temperature Rating | -55 °C to 105 °C |
| Part Number | TS-0413-08 |
| UL File No. | E68080 |
The socket is rated for a continuous current of 1 A.
It can operate from –55 °C up to 105 °C.
The body is made of glass‑filled polyester (PBT).
