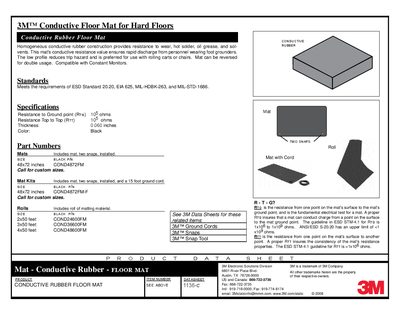

The 3M™ Conductive Rubber Floor Mat is made with a homogeneous conductive rubber construction that provides resistance to wear, hot solder, oil grease, and solvents. It meets the requirements of ESD Standard 20.20, EIA 625, MIL-HDBK-263, and MIL-STD-1686. This mat's conductive resistance value ensures rapid discharge from personnel wearing foot grounders. The low profile reduces trip hazard and is preferred for use with rolling carts or chairs. Mat can be reversed for double usage. Compatible with constant monitors.
The Conductive Rubber Floor Mat from 3M is designed for hard floor surfaces to provide rapid discharge of static electricity from personnel. Its low‑profile, reversible design reduces trip hazards and works well with rolling carts or chairs.
The mat meets ESD Standard 20.20, EIA 625, MIL‑HDBK‑263, and MIL‑STD‑1686. Specifications include resistance values, thickness, color, and available sizes such as 48×72 in (part number COND4872FM). Accessories like snaps, ground cords, and roll kits are also described.
| Resistance to Ground point (Rte) | 10° ohms |
|---|---|
| Resistance Top to Top (RTT) | 10° ohms |
| Thickness | 0.060 inches |
| Color | Black |
The resistance to ground point (Rte) is 10° ohms.
It meets ESD Standard 20.20, EIA 625, MIL‑HDBK‑263, and MIL‑STD‑1686.
Part number COND4872FM is a 48 × 72 inch mat.
Mat kits include the mat, two snaps, a ground cord, and a 15‑foot cord.
