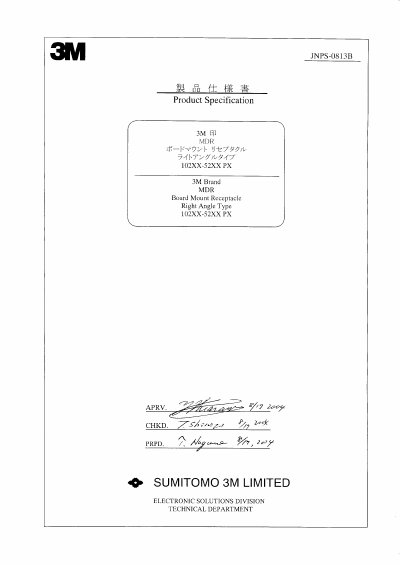

This document describes the function, scope of application, related specification drawings, related test standards, application, quality characteristics, product plating spec indication on connector of JNPS-0813 B.
The JNPS-0813B is a board‑mount right‑angle MDR receptacle with 1.27 mm pitch female contacts in two rows and staggered‑grid contact tails. It mates with 3M MDR plugs and is designed for mounting on compatible printed‑circuit boards or panels.
The document details quality performance, plating options (PL, PE, PC), and extensive environmental testing such as moisture, salt‑spray, thermal shock, humidity, and H₂S gas exposure. Packaging, storage, and handling instructions are also included. This manual is written in Japanese.
| Maximum current rating | 0.5 A |
|---|---|
| Maximum voltage rating | AC 150 V / DC 200 V |
| Insertion force | ≤ 1.47 N (150 gf) |
| Withdrawal force | ≥ 0.39 N (40 gf) |
| Dielectric withstanding voltage | 500 V AC rms for 1 min |
The connector is rated for a maximum current of 0.5 A.
A stamped three‑letter code on the connector indicates the plating: ‘R’ for PL, ‘Z’ for PE, and ‘Y’ for PC.
