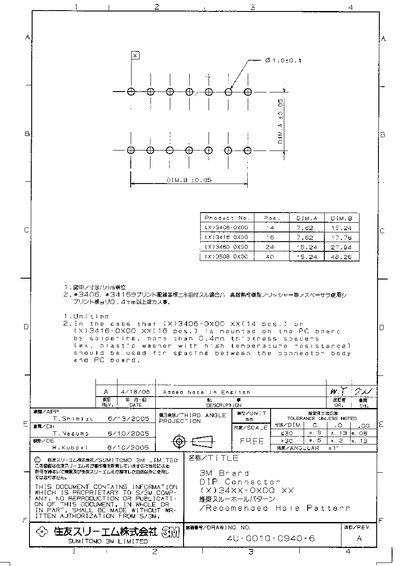

The document lists the product numbers, positions, and physical dimensions for several DIP connectors, such as (X)3406‑Ox00 (14 positions, 7.62 mm pitch, 15.24 mm length) and (X)3460‑0x00 (24 positions, 15.24 mm pitch, 27.94 mm length). It also includes revision history, tolerance notes, and legal copyright information.
When the connectors are soldered to a PCB, the manual advises using spacers thicker than 0.4 mm (plastic, high‑temperature resistant) to maintain proper spacing between the connector body and the board. The document is copyrighted by Sumitomo 3M Limited and restricts unauthorized reproduction.
| Positions (3406‑Ox00) | 14 |
|---|---|
| Pitch (3406‑Ox00) | 7.62 mm |
| Length (3406‑Ox00) | 15.24 mm |
| Recommended spacer thickness for soldering | >0.4 mm |
Spacers thicker than 0.4 mm should be used between the connector body and the PCB.
The 24‑position connector is identified as (X)3460‑0x00.
