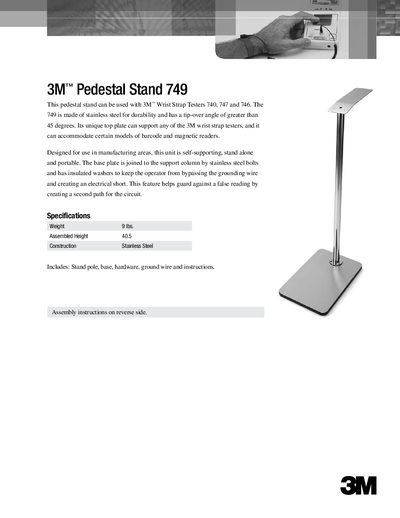

3M™ Pedestal Stand 749, can be used with 3M™ Wrist Strap Testers 740, 747 and 746. The 749 is made of stainless steel for durability and has a tip-over angle of greater than 45 degrees. Its unique top plate can support any of the 3M wrist strap testers, and it can accommodate certain models of barcode and magnetic readers. Designed for use in manufacturing areas, this unit is self-supporting, stand alone and portable. The base plate is joined to the support column by stainless steel bolts and has insulated washers to keep the operator from bypassing the grounding wire and creating an electrical short. This feature helps guard against a false reading by creating a second path for the circuit.
The 3M Pedestal Stand 749 is a stainless‑steel, self‑supporting stand designed for use with 3M wrist‑strap testers and certain barcode or magnetic readers in manufacturing areas. It features a tip‑over angle greater than 45 degrees and insulated washers to prevent grounding bypass.
The manual includes step‑by‑step assembly instructions, a parts list, and important safety notices such as proper grounding cable routing and the use of isolation gaskets. Warranty and liability information are also provided.
| Weight | 9 lbs |
|---|---|
| Assembled Height | 40.5 |
| Construction | Stainless Steel |
Run the grounding cable through the top plate and support column, then secure the ring terminal to the base plate with the provided bolts.
The kit includes the stand pole, base, hardware, ground wire, and instructions.
The stand has a tip‑over angle of greater than 45 degrees.
