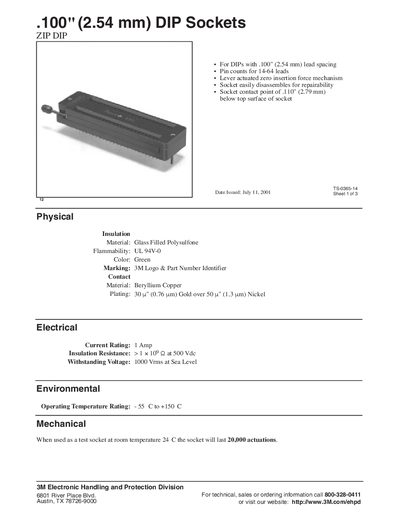

3M .100" (2.54 mm) DIP Sockets ZIP DIP TS-0365-14 is a DIP socket produced by 3M company. The socket uses glass filled polysulfone insulation, fire rating is UL 94V-0, color is green, marking is 3M logo and part number identifier, contact material is beryllium copper, plating is 30 m" (0.76 mm) Gold over 50 m" (1.3 mm) Nickel, the rated current is 1 Amp, the insulation resistance is greater than 1 ¥ 109 W at 500 Vdc, the rated voltage is 1000 Vrms at Sea Level, the operating temperature range is - 55 °C to +150°C, and the service life is 20,000 actuations.
These ZIP DIP sockets feature a lever‑actuated zero insertion force mechanism and a contact point that sits .110" (2.79 mm) below the top surface. They are made from glass‑filled polysulfone with UL 94V‑0 flammability, colored green, and marked with the 3M logo.
Technical specifications include a 1 A current rating, >1 × 10¹² Ω insulation resistance at 500 Vdc, and a withstanding voltage of 1000 Vrms. The sockets operate from –55 °C to +150 °C and can endure 20 000 actuations at room temperature. Ordering information and part numbers are provided for various lead counts.
| Pin count range | 14‑64 leads |
|---|---|
| Insertion mechanism | Lever actuated zero insertion force |
| Contact point depth | .110" (2.79 mm) below top surface |
| Insulation material | Glass Filled Polysulfone |
| Flammability rating | UL 94V‑0 |
| Contact material | Beryllium Copper |
| Plating | 30 µin (0.76 µm) Gold over 50 µin (1.3 µm) Nickel |
| Current rating | 1 A |
| Withstanding voltage | 1000 Vrms at sea level |
| Operating temperature range | -55 °C to +150 °C |
| Mechanical life (room temperature) | 20 000 actuations |
The sockets have a .100" (2.54 mm) lead spacing.
They are available for devices with 14 to 64 leads.
Each socket is rated for a maximum current of 1 A.
They are rated for operation from –55 °C up to +150 °C.
