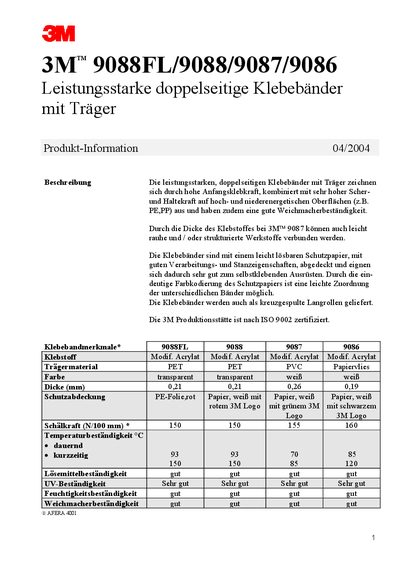

This document describes the features of the 3M TM 9088FL/9088/9087/9086 series double-sided adhesive tapes, including high initial tack, high shear and holding strength, suitable for high-energy and low-energy surfaces, and good resistance to plasticizers. The tapes have a removable protective paper and are suitable for self-adhesive applications. The product specifications include different tape materials, colors, thicknesses, and temperature resistance.
The document provides detailed product information for 3M's 9088FL, 9088, 9087 and 9086 double‑sided tapes. It describes the adhesive type, carrier materials, thicknesses, release liners, and key performance characteristics such as shear strength, temperature resistance and resistance to solvents, UV, moisture and plasticizers.
Additional sections cover roll dimensions, cutting tolerances, storage recommendations, typical applications (e.g., mounting, advertising, heavy‑material bonding) and a disclaimer about the data being based on current experience rather than guaranteed specifications. This manual is written in German.
| Adhesive modifier | Acrylate (Modif. Acrylat) |
|---|---|
| Carrier material | PET (9088FL, 9088), PVC (9087), Paper fleece (9086) |
| Thickness (mm) | 0.21 (9088FL, 9088), 0.26 (9087), 0.19 (9086) |
| Shear strength (N/100 mm) | 150 (9088FL, 9088), 155 (9087), 160 (9086) |
| Continuous temperature resistance (°C) | 93 °C (9088FL, 9088), 70 °C (9087), 85 °C (9086) |
| Roll length (m) | Standard 50 m, maximum on request |
| Roll width (mm) – minimum | 9 mm for all models |
| Core inner diameter (mm) | 76.0 mm |
The 9088FL and 9088 tapes are 0.21 mm thick, the 9087 is 0.26 mm thick, and the 9086 is 0.19 mm thick.
Continuously they resist up to 93 °C (9088FL/9088), 70 °C (9087) and 85 °C (9086); short‑term they can handle up to 150 °C (9088FL/9088), 85 °C (9087) and 120 °C (9086).
