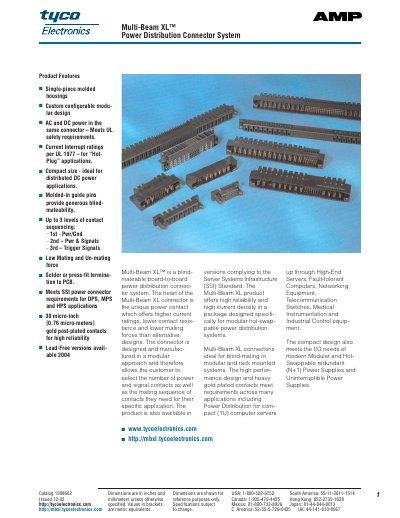

multi-beam xl is a blind-mateable board-to-board power distribution connector system.
The Multi‑Beam XL™ Power Distribution Connector System is a blind‑mateable board‑to‑board solution that offers higher current ratings, lower contact resistance and reduced mating force. It is designed in a modular fashion, allowing customers to select the number of power and signal contacts, as well as the contact sequencing, to suit specific applications such as servers, networking equipment, medical devices and industrial control.
The catalog provides detailed product features, contact designs, configurable part numbers, mechanical specifications, and ordering forms. It also lists performance data, material composition, and safety certifications for both standard and lead‑free versions.
| Maximum current per power contact | Up to 55 A (de‑rated to 35 A in 8‑adjacent positions) |
|---|---|
| Maximum current per signal contact | Up to 4 A (de‑rated to 1.5 A in 24‑position field) |
| Maximum continuous operating temperature | 105 °C |
| Contact resistance | 0.7 mΩ |
| Housing material | High‑temperature thermoplastic |
| Lead‑free version availability | Available (since 2004) |
| Minimum power‑contact wipe | 0.200 in (5.08 mm) |
| Minimum signal‑contact wipe | 0.100 in (2.54 mm) |
Each power contact can carry up to 55 A, de‑rated to 35 A when eight adjacent contacts are energized.
The housing is made from a high‑temperature thermoplastic.
Yes, lead‑free versions have been available since 2004.
The power contacts require a minimum wipe of 0.200 in (5.08 mm).
