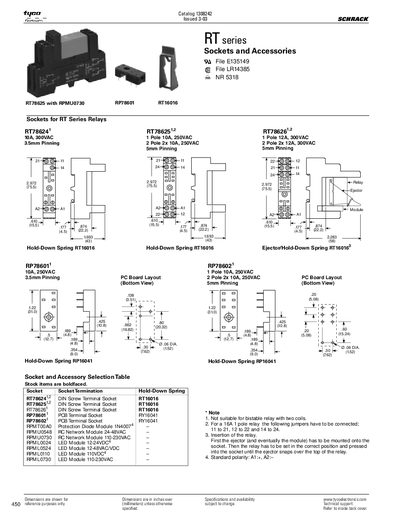

Tyco Electronics RT Series Sockets and Accessories Catalog

This document provides dimensions, pinouts, and PC board layouts for the RT series sockets and accessories.

Brand: Tyco
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 1
File format: PDF
File size: 65 KB
Published: 11 April, 2012
Updated: 30 September, 2023
MD5 checksum: 50475E757E9505B982C3E3D64F3AE1E1
PDF: Tyco Electronics RT Series Sockets and Accessories Catalog PDF

About this manual

This catalog lists the various sockets, hold‑down springs, and accessory modules compatible with the Tyco Electronics RT series relays. Part numbers such as RT78624, RT78625, and RP78601 are shown together with their voltage and current ratings.

A selection table identifies stock items, and the document includes mounting instructions, PCB layout views, and standard polarity information. Technical support details and a note on suitability for bistable relays are also provided.

What's inside

Socket and Accessory Selection Table
Hold-Down Spring
PC Board Layout
Specifications and Availability
Technical Support

Specifications

RT78624 voltage rating	300VAC
Hold‑Down Spring RT16016 voltage rating	250VAC
RP78602 current rating	10A

Frequently asked questions

What is the standard polarity for the RT series sockets?

The standard polarity is A1:+ and A2:‑.

Are the accessories suitable for bistable relays with two coils?

No, they are not suitable for bistable relays with two coils.

How should the jumpers be connected for a 16A 1‑pole relay?

Connect jumper 11 to 21, 12 to 22, and 14 to 24.
