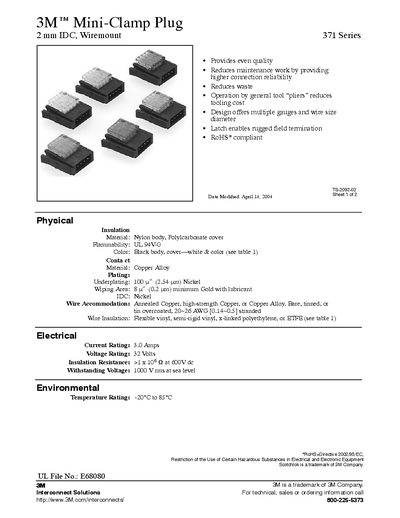

3M® Mini-Clamp Plug 2 mm IDC, Wiremount 371 Series TS-2092-02 is a connector produced by 3M Company.
The 371 Series Mini‑Clamp Plug from 3M provides a rugged, field‑terminable 2 mm IDC connector that can be installed with ordinary pliers or 3M Scotchlok crimping tools. Its design supports multiple wire gauges and offers a latch for reliable termination while reducing waste and tooling costs.
Technical data include a 3 A current rating, 32 V voltage rating, insulation resistance exceeding 10¹⁰ Ω at 600 V, and operation from –20 °C to 85 °C. Materials are a nylon body with a polycarbonate cover, UL 94V‑0 flammability rating, and plated contacts (100 Å nickel, 8 µm gold). Ordering information and wire‑size tables are provided for 20‑22 AWG and 24‑26 AWG options.
| Body Material | Nylon body, Polycarbonate cover |
|---|---|
| Contact Plating | 100 Å (2.54 µm) Nickel |
| Gold Over‑Plating | 8 µm minimum Gold with lubricant |
| Wire Accommodation | 20‑22 AWG stranded |
Yes, the product is RoHS compliant.
Termination can be done with common pliers or 3M Scotchlok E‑9BM or E‑9E crimping tools.
