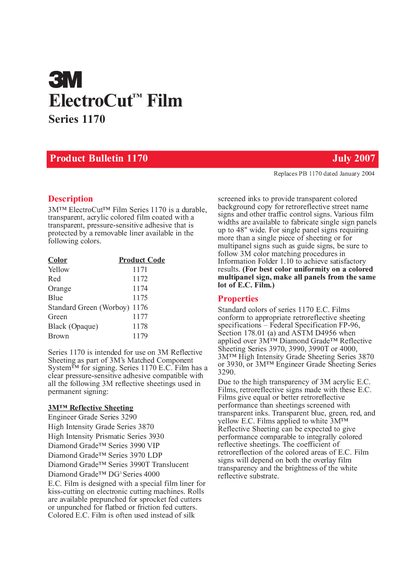

3M™ ElectroCut™ Film Series 1170 is a durable, transparent, acrylic colored film coated with a transparent, pressure-sensitive adhesive that is protected by a removable liner. It is intended for use on 3M Reflective Sheeting as part of 3M’s Matched Component System™ for signing. Colored E.C. Film is often used instead of silk screened inks to provide transparent colored background copy for retroreflective street name signs and other traffic control signs.
The 3M ElectroCut™ Film Series 1170 is a durable, transparent acrylic film with a pressure‑sensitive adhesive, offered in several colors for use on 3M reflective sheeting. It is designed for kiss‑cutting on electronic cutting machines and can be supplied pre‑punched or unpunched depending on the cutter type.
The bulletin provides detailed color codes, retroreflection coefficients, storage conditions, recommended cutting practices, and recommended transfer tapes for optimal application on traffic‑control signs and other permanent signage.
| Yellow color product code | 1171 |
|---|---|
| Red color product code | 1172 |
| Green coefficient of retroreflection (minimum) | 13.0 % |
| Green coefficient of retroreflection (maximum) | 20 % |
| Storage temperature | 65‑75 °F (18‑24 °C) |
| Relative humidity for storage | 30‑50 % |
| Recommended knife angle for cutting | 30 degrees |
Series 1170 is offered in Yellow (1171), Red (1172), Orange (1174), Blue (1175), Standard Green (Worboy) (1176), Green (1177), Black (Opaque) (1178) and Brown (1179).
Store the film in a cool, dry area at 65‑75 °F (18‑24 °C) with 30‑50 % relative humidity and use it within one year of receipt.
TPM‑5 Clear Transfer Tape is recommended, and SCPM‑3 Application Tape is also satisfactory for small signs.
A 30‑degree blade works best for cutting the film cleanly without cutting into the liner.
