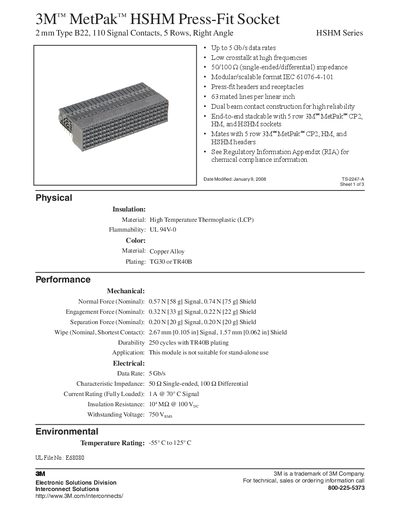

3M™ MetPak™ HSHM Press-Fit Socket 2 mm Type B22, 110 Signal Contacts, 5 Rows, Right Angle HSHM Series Up to 5 Gb/s data rates Low crosstalk at high frequencies 50/100 Ω (single-ended/differential) impedance Modular/scalable format IEC 61076-4-101 Press-fit headers and receptacles 63 mated lines per linear inch Dual beam contact construction for high reliability End-to-end stackable with 5 row 3M™ MetPak™ CP2, HM, and HSHM sockets Mates with 5 row 3M™ MetPak™ CP2, HM, and HSHM headers See Regulatory Information Appendix (RIA) for chemical compliance information.
The 3M MetPak HSHM Press‑Fit Socket is a 2 mm Type B22, 110‑signal‑contact, 5‑row right‑angle connector designed for high‑speed applications up to 5 Gb/s. It features low crosstalk, 50 Ω single‑ended or 100 Ω differential impedance, and a modular IEC‑61076‑4‑101 format that can be stacked with other MetPak sockets.
The document provides detailed physical and performance parameters, electrical ratings, environmental limits, and extensive RoHS compliance information for both EU and China regulations. Ordering details, plating specifications, and recommended PCB hole patterns are also included.
| Characteristic Impedance | 50 Ω single‑ended, 100 Ω differential |
|---|---|
| Current Rating (Fully Loaded) | 1 A @ 70 °C (Signal) |
| Temperature Rating | -55 °C to 125 °C |
| Insulation Resistance | 10 MΩ @ 100 V |
| Withstanding Voltage | 750 V·µs |
It is rated for operation from –55 °C to 125 °C.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC.
The nominal signal contact force is 0.57 N (58 g).
