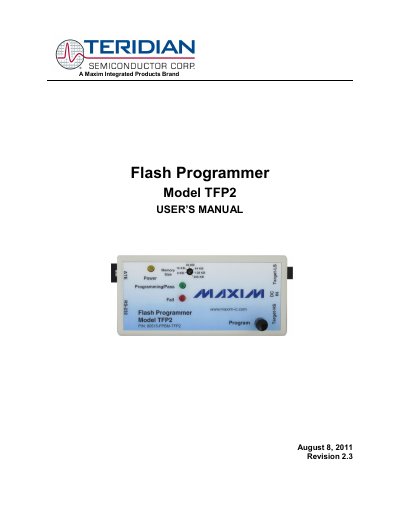

Maxim Integrated TFP2 Flash Programmer User Manual

This is a user manual for Flash Programmer Model TFP2

Brand: Teridian
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 1.1 MB
Published: 09 April, 2012
Updated: 30 September, 2023
MD5 checksum: 3CECC8B88E3FF756BB176C3A3CE77E0A
PDF: Maxim Integrated TFP2 Flash Programmer User Manual PDF

About this manual

The TFP2 Flash Programmer is a stand‑alone device for programming flash memory in Teridian Semiconductor embedded controllers. It can operate manually via push‑buttons or be controlled by a PC or factory‑automation system, and supports flash sizes from 8 KB up to 256 KB.

The manual provides detailed instructions for getting started, using the PC interface and CHKSUM.EXE utility, configuring power and RS‑232 connections, performing standalone programming, and diagnosing communication or verification errors.

What's inside

Getting Started
PC User Interface
Target Code Initialization
Target Flash Memory Programming
Boot Loader
Status Indications
Hardware Specifications
Troubleshooting
Ordering Information

Specifications

Supported flash memory sizes	8 KB, 16 KB, 32 KB, 64 KB, 128 KB, 256 KB
Power supply	5 VDC / 1 A universal wall transformer
Interface	RS‑232 serial connection to PC
Status indicators	Two front‑panel LEDs
Target connectors	ADM‑51 ribbon cable connector and discrete wire connector

Frequently asked questions

What flash memory sizes does the TFP2 support?

It supports flash memories of 8 KB, 16 KB, 32 KB, 64 KB, 128 KB and 256 KB.

How do I prepare a hex file for programming with the TFP2?

Run the CHKSUM.EXE utility on the Intel HEX file to create a sequential address structure before downloading it to the TFP2.

How is the TFP2 powered?

The unit is powered by a 5 VDC, 1 A universal wall transformer supplied with the kit.
