Teridian 73S1217F System-on-Chip Datasheet

The Teridian Semiconductor Corporation 73S1217F is a versatile and economical CMOS System-on-Chip device intended for smart card reader applications. The circuit features an ISO-7816 / EMV interface, an USB 2.0 interface (full-speed 12Mbps - slave) and a 5x6 PINpad interface. Additional features include 8 user I/Os, multiple interrupt options and an analog voltage input (for DC voltage monitoring such as battery level detection). Other built-in interfaces include an asynchronous serial and an I2C interface. The System-on-Chip is built around an 80515 high-performance core. Its feature and instruction set is compatible with the industry standard 8051, while offering one clock-cycle per instruction processing power (most instructions). With a CPU clock running up to 24MHz, it results in up to 20MIPS available that meets the requirements of various encryption needs such as AES, DES / 3-DES and even RSA (for PIN encryption for instance). The circuit requires a single 6 to 12 MHz crystal. An optional 32kHz crystal can be connected to a sub-system oscillator with a real-time-clock counter to enable stand-alone applications to access an RTC value. The respective 73S1217F embedded memories are; 64KB Flash program memory, 2KB user XRAM memory, and 256B IRAM memory. On top of these, the 73S1217F includes a 128-bit unique serial number (UID) that can be used for identification purposes.

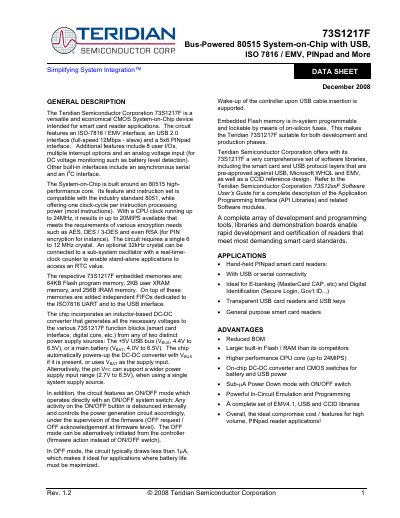

Teridian 73S1217F System-on-Chip Datasheet - cover page
Brand
Teridian
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
140
File format
PDF
File size
1.5 MB
Published
09 April, 2012
Updated
30 September, 2023
MD5 checksum
BD74BD8CD508A54E0C6A4000FBC2E705

About this manual

The 73S1217F is a CMOS system‑on‑chip designed for smart‑card reader applications. It integrates an 80515 core compatible with the 8051 instruction set, a 64 KB Flash program memory, 2 KB XRAM, 256 B IRAM, USB 2.0 full‑speed, ISO‑7816/EMV smart‑card interface, a 5×6 keypad interface, 8 user I/Os and an on‑chip step‑up DC‑DC converter.

Power can be supplied from the USB bus (VBUS 4.4‑5.5 V) or a battery (VBAT 4.0‑6.5 V), with an optional VPC input (2.7‑6.5 V). The device features a sub‑µA OFF mode, on‑board analog voltage detection, and extensive peripheral interfaces including UART, I²C, timers and LED driver.

What's inside

  • Hardware Description
  • Pin Description
  • Memory Organization
  • Power Supply Management
  • USB Interface
  • Smart Card Interface
  • Electrical Specification
  • Ordering Information

Specifications

CPU clock speedup to 24 MHz
Flash program memory64 KB
XRAM (user data memory)2 KB
IRAM256 B
Operating voltage range2.7 V to 6.5 V
USB interface speedFull‑speed 12 Mbps
Analog input detection range1.0 V to 1.5 V
OFF mode current draw< 1 µA
Package type68‑pin QFN

Frequently asked questions

What is the maximum CPU clock frequency of the 73S1217F?

The core can run at up to 24 MHz.

How much current does the chip draw in OFF mode?

In OFF mode the device typically draws less than 1 µA.
