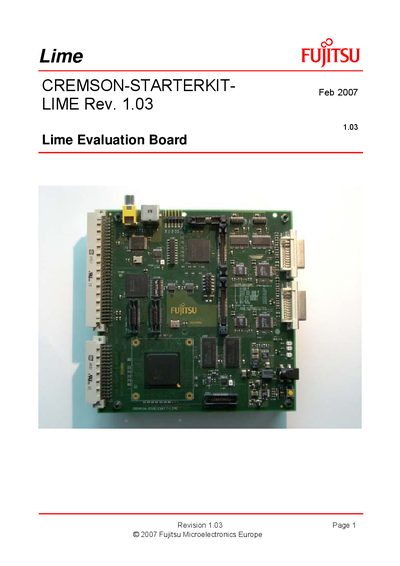

This document describes the features and characteristics of the Lime CREMSON-STARTERKIT- LIME Rev. 1.03 Feb 2007 1.03 Lime Evaluation Board.
The CREMSON-STARTERKIT-LIME is a low‑cost, multifunctional evaluation board for Fujitsu's MB86276 “Lime” graphic controller. It connects to the CREMSON‑STARTERKIT‑CPU‑Modul board, allowing engineers to develop and test software before a final target system is available.
The board includes a 256‑bit BGA package graphic controller, 64 Mbytes SDRAM, multiple video outputs (DVI, RGB, LVDS), video inputs (digital RGB, YUV422, CVBS, S‑Video), and a range of configuration options via DIP switches and LEDs. Detailed specifications such as clock frequencies, power consumption, and operating temperature are provided in the manual.
| Technology | CMOS 0.18 µm |
|---|---|
| Internal and memory frequency | 133 MHz |
| Base‑clock for display clocks | 400.9 MHz |
| Display resolution | Typically from 320×240 |
| Supply voltage | 3.3 V I/O, 1.8 V internal |
| Power consumption | < 1.0 W (typical) |
| Operating temperature range | -40 °C to +85 °C |
| External SDRAM interface | 32‑bit |
| Alpha blending and anti‑aliasing | Built‑in |
| Package | BGA‑256, 1.27 mm pitch |
The board provides two DVI connectors, two 8‑bit RGB digital outputs, and two LVDS outputs for video.
