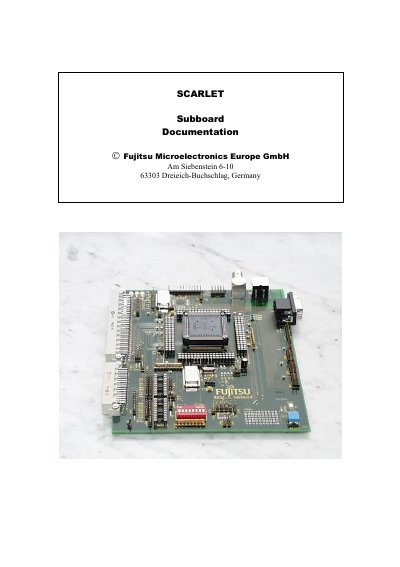

Fujitsu SCARLET Subboard Documentation Manual

About this manual

The SCARLET Subboard is a low‑cost multifunctional evaluation board for the Fujitsu Scarlet graphic controller. It can be used with the CREMSON‑Starterkit CPU‑Modul for software development and testing, allowing designers to start development before a final target system is available.

The manual details the board's features, jumper and switch settings, power‑supply configurations, reset options, video input processor connections, and includes schematics, warranty terms, and an important notice about its intended evaluation‑lab use.

What's inside

• Introduction
• Features
• Jumpers and Switches
• Graphic Controller Operating Mode
• Reset Pin Configuration
• Video Input Processor
• Clock Settings
• PAL Settings
• Schematics and Drawings
• Warranty and Disclaimer

Specifications

Frequently asked questions

How can the reset pin be configured on the board?

Use jumper JP29: position 1‑2 connects the Scarlet reset pin to the board reset, while position 2‑3 routes the reset through the MCU port.
