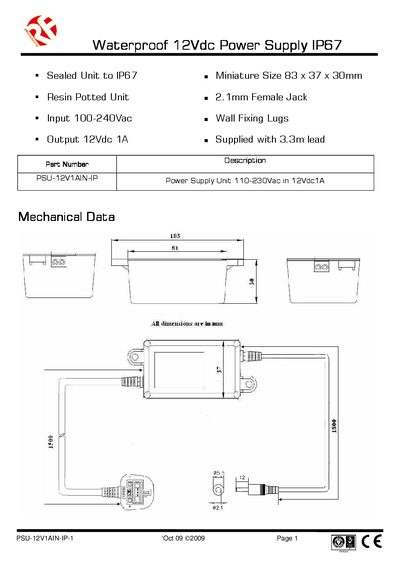

This is a 12Vdc waterproof power supply with the model PSU-12V1AIN-IP-1. It features IP67 sealing, an 83 x 37 x 30mm small size, a 2.1mm female socket, 100-240Vac input, 12Vdc 1A output and a 3.3m cable.
The PSU-12V1AIN-IP-1 is a sealed, IP67‑rated 12 V DC power supply designed for rugged applications. It operates from a universal AC input of 90‑264 V at 50/60 Hz and delivers a regulated 12 V output with up to 1 A current.
The unit complies with EN60065 safety, EN55022B/FCC EMI standards and European RoHS and WEEE directives. Mechanical dimensions are 81 × 37 × 30 mm (L×W×H) and it includes 1.8 m output and 1.5 m input cables.
| Input Voltage (Nominal) | 100‑240 Vac |
|---|---|
| Input Voltage Range | 90‑264 Vac |
| Input Frequency | 50/60 Hz |
| Input Current (Full Load) | 0.40 A rms |
| Output Voltage (Nominal) | 12.0 Vdc |
| Output Voltage Range | 11.40‑12.60 Vdc |
| Maximum Output Current | 1 A |
| Line Regulation | ≤ 1 % |
| Load Regulation | +5 % |
| Ripple and Noise | < 50 mV p‑p |
| Efficiency | ≥ 70 % |
| Output Cable Length | 1.8 m |
| Input Cable Length | 1.5 m |
| Size (L×W×H) | 81 × 37 × 30 mm |
| Storage Temperature | -10 °C to +70 °C |
| Operating Humidity | 10 % RH to 90 % RH |
| Storage Humidity | 5 % RH to 90 % RH |
It accepts an input voltage from 90 V to 264 V AC.
The unit provides a regulated 12.0 V DC output, adjustable between 11.40 V and 12.60 V, with a maximum current of 1 A.
The power supply is sealed to an IP67 rating, making it waterproof.
