DS16EV5110 is a video equalizer (3D+C) for DVI, HDMI sink-side applications, optimized for operation between 250Mbps and 2.25Gbps with common applications at 1.65Gbps and 2.25Gbps (per data channel).

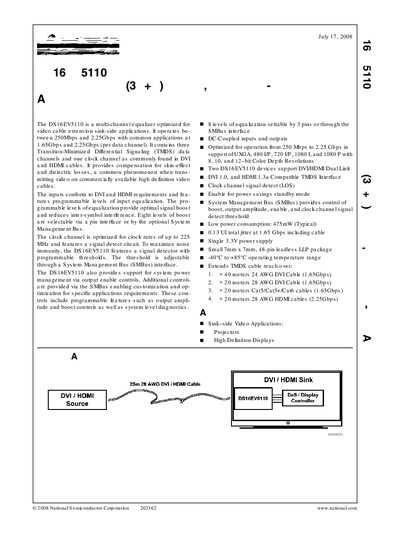

The DS16EV5110 video equalizer is optimized for sink‑side DVI and HDMI applications. It handles three TMDS data channels and a clock channel, operating from 250 Mbps to 2.25 Gbps and providing compensation for cable loss and skin‑effect. Programmable equalization levels (eight boost steps) can be set with three pins or through the optional System Management Bus (SMBus).
The device includes a low‑power mode (475 mW typical), a 3.3 V single‑supply, and a compact 7 mm × 7 mm 48‑pin leadless LLP package. It supports SMBus 2.0 for configuration, with a fixed 7‑bit address of 0xAC and bus frequencies from 10 kHz to 100 kHz. Electrical specifications such as input/output voltage ranges, jitter, and temperature limits are detailed in the document.
| Data rate range | 250 Mbps – 2.25 Gbps |
|---|---|
| Clock channel max rate | 225 MHz |
| Typical power consumption | 475 mW |
| Supply voltage (Vpp) | -0.5 V to +4.0 V |
| Operating temperature range | 40 °C – 85 °C |
| Package size | 7 mm × 7 mm, 48‑pin leadless LLP |
| Total jitter at 1.65 Gbps | 0.13 UI |
It operates from 250 Mbps up to 2.25 Gbps, with common applications at 1.65 Gbps and 2.25 Gbps per data channel.
Boost levels can be selected with three pins or via the optional System Management Bus (SMBus).
Typical power consumption is 475 mW.
