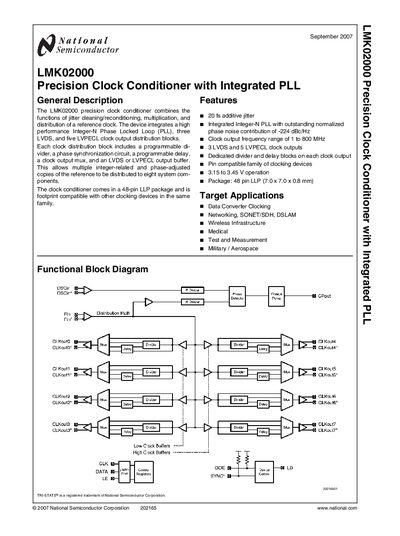

The LMK02000 precision clock conditioner combines the functions of jitter cleaning/reconditioning, multiplication, and distribution of a reference clock. It features 20 fs additive jitter, an integrated Integer-N PLL, a clock output frequency range of 1 to 800 MHz, 3 LVDS and 5 LVPECL clock outputs, dedicated divider and delay blocks, and a pin compatible family of clocking devices.
The LMK02000 precision clock conditioner combines jitter cleaning, multiplication, and distribution of a reference clock. It integrates an Integer‑N PLL, three LVDS and five LVPECL clock output blocks, each with programmable divider, phase sync, delay, and output mux.
The device is supplied in a 48‑pin lead‑less package (7.0 × 7.0 × 0.8 mm) and is targeted for data‑converter clocking, networking, wireless infrastructure, medical, test & measurement, and aerospace applications. Detailed pin descriptions, electrical characteristics, and timing diagrams are provided for system integration.
| Additive jitter | 20 fs |
|---|---|
| Phase noise contribution | -224 dBc/Hz |
| Clock output frequency range | 1 to 800 MHz |
| LVDS outputs | 3 |
| LVPECL outputs | 5 |
| Supply voltage (typical) | 3.15 V to 3.45 V |
| Package | 48‑pin LLP (7.0 × 7.0 × 0.8 mm) |
| Storage temperature range | -65 °C to 150 °C |
| Ambient temperature (recommended) | -40 °C to 85 °C |
The LMK02000 can output clocks from 1 MHz up to 800 MHz.
It provides three LVDS outputs and five LVPECL outputs.
Typical operation uses a supply voltage between 3.15 V and 3.45 V.
The device is supplied in a 48‑pin lead‑less package (7.0 × 7.0 × 0.8 mm).
