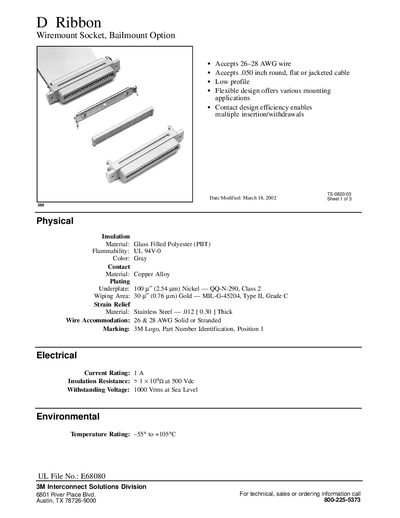

This document describes the features and characteristics of the D Ribbon Wiremount Socket product from 3M Interconnect Solutions Division. The product accepts 26-28 AWG wire and .050 inch round, flat, or jacketed cable. It has a low profile and flexible design for various mounting applications. The contact design enables multiple insertion/withdrawals. The product's physical insulation material is glass-filled polyester (PBT) with a flammability rating of UL 94V-0. It is gray in color. The contact material is copper alloy with nickel and gold plating. The strain relief material is stainless steel. The product accommodates 26 and 28 AWG solid or stranded wire. It is marked with the 3M logo, part number identification, and position 1. The electrical current rating is 1A, insulation resistance is greater than 1×109Ω at 500 Vdc, and the withstanding voltage is 1000 Vrms at sea level. The temperature rating is -55°C to +105°C.
The D Ribbon Wiremount Socket Bailmount Option is a low‑profile, flexible connector that accepts 26‑28 AWG wire or .050 inch round, flat or jacketed cable. It features a copper‑alloy contact with nickel underplate and gold wiping area, and a stainless‑steel strain‑relief flange.
The datasheet lists physical, electrical and environmental specifications, detailed dimensions for front and rear mounting, contact position tables, and ordering information including part numbers and panel cutout configurations.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability | UL 94V-0 |
| Contact Material | Copper Alloy |
| Strain Relief Material | Stainless Steel |
| Current Rating | 1 A |
| Temperature Rating | ‑55 °C to +105 °C |
It accepts 26‑28 AWG wire and .050 inch round, flat or jacketed cable.
The connector is rated for a maximum current of 1 A.
It operates from –55 °C up to +105 °C.
The insulation material is glass‑filled polyester (PBT).
