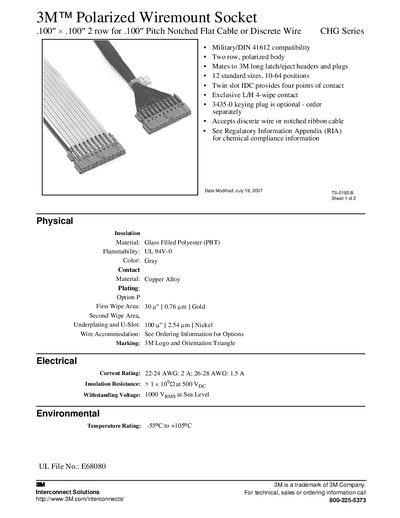

3M CHG series polarized wiremount socket has two rows and is suitable for .100 inch pitch notched flat cable or discrete wire.
The Polarized Wiremount Socket is a .100" × .100" two‑row connector designed for .100" pitch notched flat cable or discrete wire. It features a polarized body, twin‑slot IDC with four contact points, and exclusive L/H 4‑wipe contacts. The socket is compatible with 3M long latch/eject headers and plugs, and offers 12 standard sizes ranging from 10 to 64 positions.
Electrical ratings include 2 A for 22‑24 AWG and 1.5 A for 26‑28 AWG wires, with a withstanding voltage of 1000 V p.m.s. at sea level. The connector operates from –55 °C to +105 °C and uses a glass‑filled polyester (PBT) housing with UL 94V‑0 flammability. Ordering options cover various polarization, wire‑size, and plating configurations, and regulatory compliance information is provided for EU and China RoHS.
| Connector size | .100" × .100" 2‑row |
|---|---|
| Current rating (22‑24 AWG) | 2 A |
| Current rating (26‑28 AWG) | 1.5 A |
| Withstanding voltage | 1000 V p.m.s. at sea level |
| Temperature rating | -55 °C to +105 °C |
| Contact plating (gold) | 30 µm |
| Contact plating (nickel) | 100 µm |
The socket can carry 2 A for 22‑24 AWG wires.
It is rated for operation from –55 °C up to +105 °C.
The socket is available in 12 standard sizes covering 10 to 64 positions.
