The document provides information about the products of 3M Interconnect Solutions, including the features and characteristics of PCB connectors.

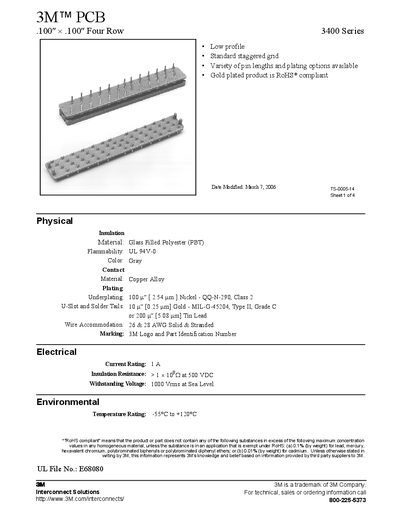

The 3400 Series is a low‑profile, four‑row PCB connector with a standard staggered grid. It offers a variety of pin lengths and plating options, including gold‑plated (RoHS compliant) and tin‑lead finishes. Physical specifications list a glass‑filled polyester (PBT) housing, UL 94V‑0 flammability rating, gray color, and copper‑alloy contacts. Electrical ratings include a 1 A current rating, 1000 Vrms withstanding voltage, and a temperature range of –55 °C to +120 °C.
Ordering information is provided for each pin count (10, 20, 26, 34, 40, 50) with part numbers, dimensions, and recommended assembly tools. Technical or sales inquiries can be made by calling 800‑225‑5373 or visiting the 3M Interconnects website.
| Housing Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability Rating | UL 94V‑0 |
| Contact Material | Copper Alloy |
| Current Rating | 1 A |
| Withstanding Voltage | 1000 Vrms at Sea Level |
| Temperature Rating | -55 °C to +120 °C |
The connector is rated for a continuous current of 1 A.
The connector is rated for temperatures from –55 °C up to +120 °C.
Contact 3M Interconnect Solutions at 800‑225‑5373 or visit www.3M.com/interconnects.
