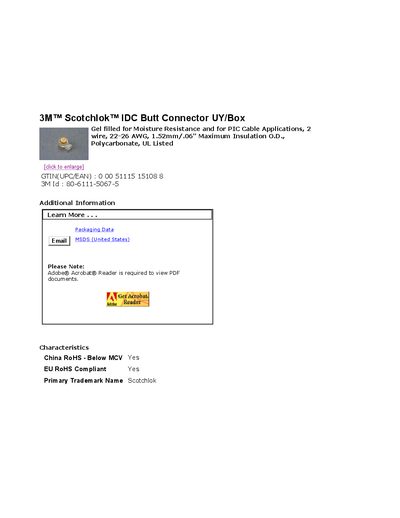

3M™ Scotchlok™ IDC Butt Connector UY/Box features gel filled for moisture resistance and for PIC Cable Applications, 2 wire, 22-26 AWG, maximum insulation O.D. 1.52mm/.06"
The Scotchlok IDC Butt Connector UY/Box is a gel‑filled, moisture‑resistant connector designed for PIC cable applications. It accepts 2‑wire bundles of 22‑26 AWG size and features a maximum insulation outer diameter of 1.52 mm (0.06 in). The housing is made of polycarbonate and the connector is UL listed.
Packaging includes a GTIN barcode (0 00 51115 15108 8) and the 3M identifier 80‑6111‑5067‑5. The product complies with China RoHS (Below MCV) and EU RoHS regulations. Additional information such as MSDS can be requested via email.
| Wire size | 22‑26 AWG |
|---|---|
| Maximum insulation outer diameter | 1.52 mm (0.06 in) |
| Housing material | Polycarbonate |
| Moisture resistance | Gel filled |
| UL listing | UL Listed |
| China RoHS compliance | Below MCV – Yes |
| EU RoHS compliance | Yes |
It supports 22‑26 AWG wire.
Yes, the connector is UL listed.
The housing is made of polycarbonate.
Yes, it complies with both China RoHS (Below MCV) and EU RoHS.
