The 101XX-6000EC series from 3M is a line of IDC wiremount shielded I/O plug connectors that includes 20 and 26 position MDR-digital LCD interfaces and 36 position IEEE 1284 interfaces. These connectors feature a reliable repetitive plugging/unplugging design and accept a wide variety of cable types including round, twisted pair, twinax, and flat cable.
The 101XX-6000EC Series is a shielded IDC wiremount plug connector offered by 3M Interconnect Solutions. It supports a variety of cable types, including round, twisted pair, twinax, and flat cable, and is available in multiple position configurations such as 14, 20, 26, 36, 40, 68, 80, and 100.

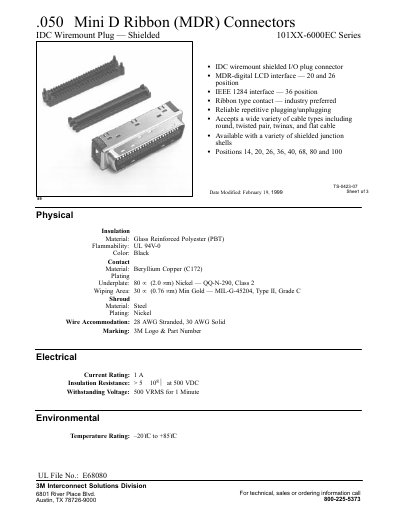

The datasheet provides detailed physical, electrical, and environmental specifications, including insulation material, contact plating, current rating, insulation resistance, and temperature range, as well as ordering information and contact dimensions for each position option.
| Insulation Material | Glass Reinforced Polyester (PBT) |
|---|---|
| Flammability | UL 94V-0 |
| Contact Material | Beryllium Copper (C172) |
| Wire Accommodation | 28 AWG stranded, 30 AWG solid |
Ordering information is provided on the last page of the datasheet and you can also call 3M Interconnect Solutions at 800‑225‑5373.
