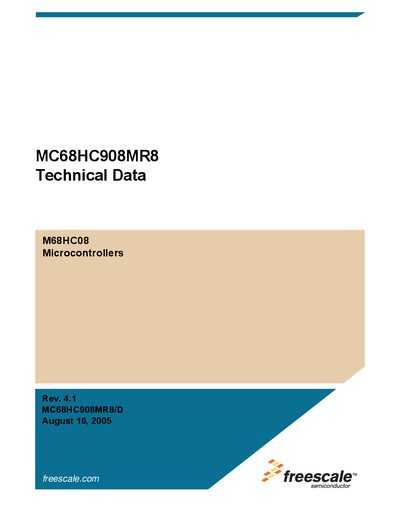

Freescale MC68HC908MR8 Technical Data Manual

About this manual

The MC68HC908MR8 Technical Data Manual provides a detailed description of the microcontroller, including its features, block diagram, pin assignments and power supply pins. It outlines the device's architecture, such as the CPU, SIM, CGM, and PWM modules, and lists the functional blocks and their interconnections.

The document also contains extensive information on memory organization (RAM, FLASH, configuration registers), peripheral interfaces (SCI, timers, ADC, I/O ports), and electrical and mechanical specifications. Ordering information, revision history and contact details for Freescale support are included at the end of the manual.

What's inside

• General Description
• Memory Map
• Random-Access Memory (RAM)
• FLASH Memory
• Configuration Register (CONFIG)
• Central Processor Unit (CPU)
• Clock Generator Module (CGM)
• Pulse-Width Modulator for Motor Control (PWMMC)
• Analog-to-Digital Converter (ADC)
• Electrical Specifications

Frequently asked questions

Does Freescale provide any warranty for the MC68HC908MR8?

Freescale makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose.

Can the MC68HC908MR8 be used in surgical implant or life‑supporting applications?

No, the MC68HC908MR8 is not designed, intended, or authorized for use in systems intended for surgical implant or any application where failure could cause personal injury or death.
