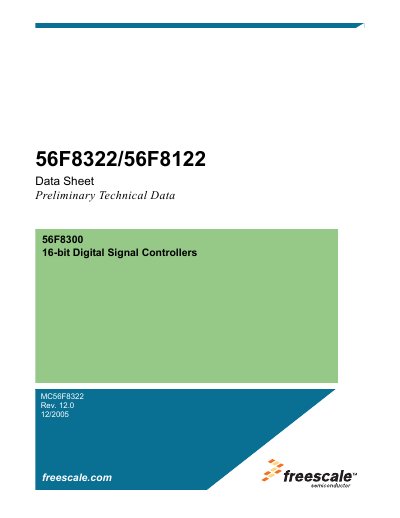

This document provides technical data and features of the 56F8300 16-bit digital signal controllers from Freescale.
The Freescale 56F8322 and 56F8122 are 16‑bit digital signal controllers based on the 56800E core. They combine DSP performance with microcontroller functionality, offering up to 60 MIPS at 60 MHz, multiple on‑chip peripherals, and extensive memory resources.
The document provides detailed information on device architecture, pin‑out, clock synthesis, memory map, interrupt controller, GPIO, PWM, ADC, CAN, and other peripherals, as well as electrical characteristics, packaging, design considerations and ordering information. This manual is written in Chinese.
| Core frequency / performance | Up to 60 MHz, 60 MIPS |
|---|---|
| Program Flash | 32 KB |
| Program RAM | 4 KB |
| Data Flash | 8 KB |
| Data RAM | 8 KB |
| Boot Flash | 8 KB |
| PWM modules | One 6‑channel PWM module |
| ADC channels | Two 12‑bit ADCs |
The 56F8322 can run at up to 60 MHz, delivering 60 MIPS.
It includes 32 KB of program flash memory.
Yes, the device includes features such as FlexCAN and a PWM module that are highlighted for automotive control.
