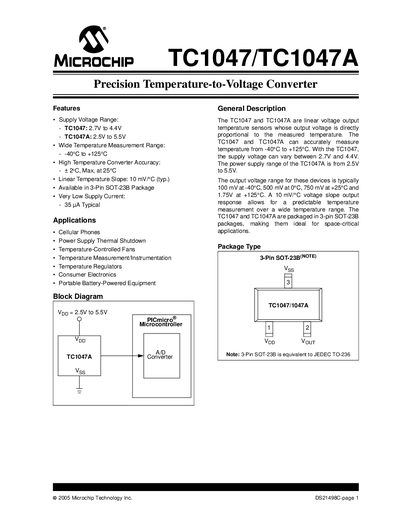

This document is a product manual for TC1047/TC1047A, which introduces its features, characteristics and applications.
The TC1047 and TC1047A are linear voltage‑output temperature sensors that convert temperature to a proportional voltage. They operate from –40 °C to +125 °C and are supplied in a 3‑Pin SOT‑23B package, making them suitable for space‑critical applications. Supply voltage ranges are 2.7 V‑4.4 V for the TC1047 and 2.5 V‑5.5 V for the TC1047A, with a typical supply current of only a few tens of picoamps.
Key specifications include a fixed 10 mV/°C slope, 500 mV output at 0 °C, and accuracy of ±2 °C at 25 °C. The datasheet also details pin functions, mechanical dimensions, and typical performance curves, along with revision history and code‑protection notices.
| Supply Voltage Range (TC1047) | 2.7 V to 4.4 V |
|---|---|
| Supply Current (Operating) | 35 pA (TC1047) / 60 pA (TC1047A) |
| Temperature‑to‑Voltage Slope | 10 mV/°C (typ.) |
| Output Voltage at 0 °C | 500 mV |
| Package Type | 3‑Pin SOT‑23B (JEDEC TO‑236) |
| Pin 1 Function | Vop – Input Supply Voltage |
| Pin 2 Function | Vout – Temperature Sensor Output |
The TC1047 operates from 2.7 V to 4.4 V, while the TC1047A operates from 2.5 V to 5.5 V.
Both devices have a fixed slope of 10 mV per degree Celsius.
They are supplied in a 3‑Pin SOT‑23B package, equivalent to JEDEC TO‑236.
Typical operating supply current is 35 pA for the TC1047 and 60 pA for the TC1047A.
