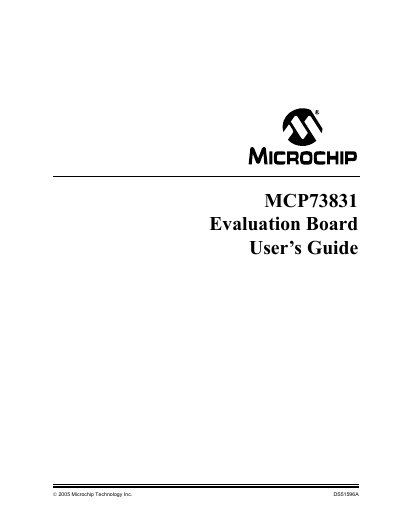

This document is a summary of Microchip MCP73831 Evaluation Board User's Guide
This guide provides an overview of the MCP73831 Evaluation Board, describing its purpose and the components included in the kit. It also outlines the conventions used in the document and lists recommended reading such as the MCP73831 data sheet and related application notes.
The manual details installation steps, board features, and getting‑started procedures, and includes appendices with schematic/layout diagrams and a complete bill of materials. Contact information for worldwide sales and technical support is provided at the end of the document.
| C1, C2, C5, C6 | 4.7 µF, X5R, 10 V, 0805 |
|---|---|
| R1, R2, R9, R10 | 221 Ω, 1 W, 0603 |
| U1 | MCP73831‑2ACI/OT, Miniature Li‑ion charger, SOT23‑5 |
The kit includes the MCP73831 Evaluation Board, the required components listed in the bill of materials, and documentation such as this user guide.
