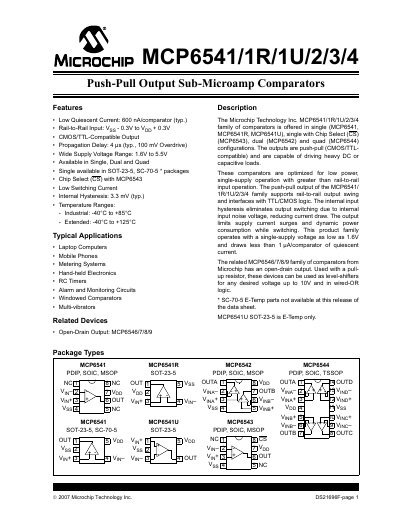

MCP6541/1R/1U/2/3/4 is a comparator with low quiescent current, wide voltage range, and output that can drive heavy loads. It is suitable for laptops, mobile phones, and other devices.
The MCP6541/1R/1U/2/3/4 family from Microchip provides single, dual and quad push‑pull comparators. They feature low quiescent current (600 nA typical per comparator), rail‑to‑rail input operation, and CMOS/TTL‑compatible outputs capable of driving heavy loads.
The device operates from a single supply of 1.6 V to 5.5 V, supports industrial (‑40 °C to +85 °C) and extended (‑40 °C to +125 °C) temperature ranges, and offers typical propagation delay of 4 µs and internal hysteresis of 3.3 mV. Detailed electrical, AC, and temperature characteristics are provided in the datasheet.
| Quiescent Current (typical) | 0.6 µA per comparator |
|---|---|
| Supply Voltage Range | 1.6 V to 5.5 V |
| Input Voltage Range | Vg ‑ 0.3 V to Vpp + 0.3 V |
| Propagation Delay (typical) | 4 µs |
| Internal Hysteresis (typical) | 3.3 mV |
| Industrial Temperature Range | -40 °C to +85 °C |
| Extended Temperature Range | -40 °C to +125 °C |
The typical quiescent current is 600 nA per comparator.
It operates from 1.6 V up to 5.5 V.
Industrial range is –40 °C to +85 °C, and an extended range of –40 °C to +125 °C is available.
Typical propagation delay is 4 µs (with 100 mV overdrive).
