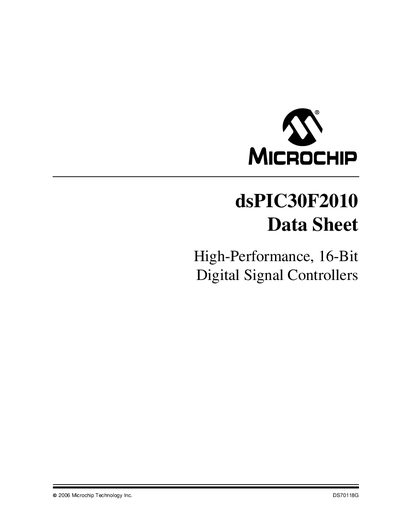

dsPIC30F2010 Data Sheet, High-Performance, 16-Bit Digital Signal Controllers
The dsPIC30F2010 is a high‑performance 16‑bit digital signal controller featuring a Modified Harvard architecture, up to 30 MIPS operation, and a rich set of peripherals for motor control and signal processing. It includes on‑chip Flash, RAM, EEPROM, multiple timers, PWM channels, SPI, I²C, UART, and a 10‑bit ADC.
Designed for industrial applications, the device operates over a wide temperature range and offers programmable code protection, low‑power modes, and robust clock monitoring. The datasheet provides detailed specifications, block diagrams, and electrical characteristics for designers.
| Package | 28‑pin PDIP/SOIC/QFN |
|---|---|
| Flash Program Memory | 12 KB |
| Data RAM | 512 bytes |
| Data EEPROM | 1 KB |
| Maximum Performance | Up to 30 MIPS |
| PWM Output Channels | 6 channels |
| ADC Resolution | 10‑bit |
| ADC Conversion Rate | 1 MS/s |
| Operating Temperature Range | Industrial range (typical 100 K) |
It provides 12 KB of on‑chip Flash program space.
The device includes six PWM output channels.
It can operate at up to 30 MIPS.
The ADC can convert at 1 MS/s for 10‑bit resolution.
