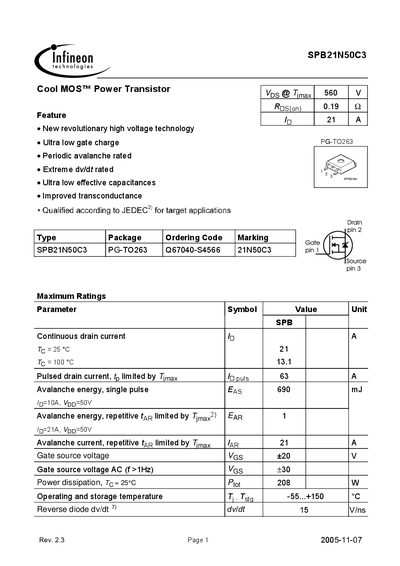

This data sheet provides information on maximum ratings, thermal characteristics, package type, package dimensions, pinout, applications for SPB21N50C3 Cool MOS™ Power Transistor
The SPB21N50C3 is a 560 V, 21 A CoolMOS™ power transistor offered in a PG‑TO‑263 package. The datasheet provides maximum ratings, thermal characteristics, electrical parameters, and typical performance curves for design engineers.
Key sections include maximum ratings (e.g., 500 V breakdown, 13.1 A continuous drain current), thermal resistance values, on‑state resistance, gate charge data, avalanche energy, and package footprint dimensions.
| Maximum power dissipation at 25 °C | 208 W |
|---|---|
| Operating temperature range | -55 °C to +150 °C |
The recommended reflow soldering temperature for the TO‑263 package is 220 °C.
