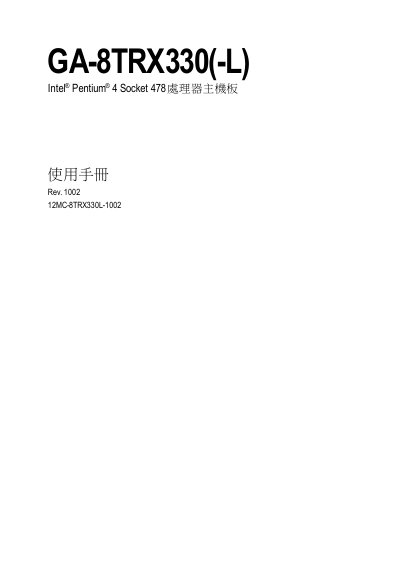

Gigabyte GA-8TRX330(-L) Motherboard User Manual

About this manual

This manual provides detailed information for the Gigabyte GA-8TRX330(-L) motherboard, including an overview of the board layout, component descriptions, and step‑by‑step installation instructions. It also contains safety notices, warranty information, and contact details for Gigabyte support.

The document walks the user through BIOS configuration, power‑management settings, integrated peripheral setup, and troubleshooting tips. A full table of contents lists sections such as Standard CMOS Features, Advanced BIOS Features, Integrated Peripherals, Power Management Setup, and PC Health Status. This manual is written in Chinese.

What's inside

• Standard CMOS Features
• Advanced BIOS Features
• Integrated Peripherals
• Power Management Setup
• PnP/PCI Configurations
• PC Health Status
• Frequency/Voltage Control
• Load Optimized Defaults
• Set Supervisor/User Password
• Save & Exit Setup

Specifications

Frequently asked questions

What CPU socket does the GA-8TRX330(-L) motherboard support?

It supports an Intel® Pentium® 4 processor with Socket 478.

Which LAN controller is integrated on the GA-8TRX330(-L)?

A Realtek RTL8100C 10/100 Mbit Ethernet controller is built in.

What audio codec does the motherboard use?

It uses the Realtek ALC655 audio codec.
