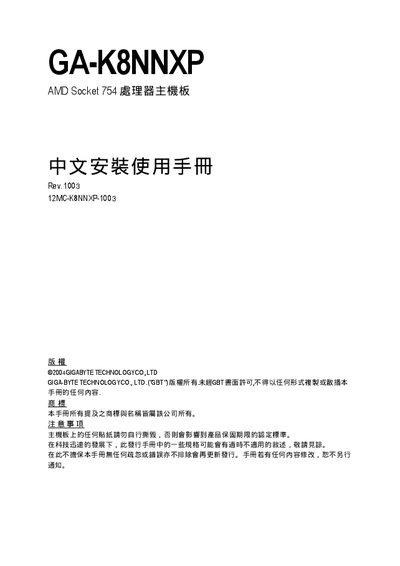

This is the GA-K8NNXP motherboard installation and user manual, which introduces the characteristics of the motherboard and provides installation steps
This manual provides step‑by‑step instructions for installing the GA‑K8NNXP motherboard, including preparation, hardware mounting, connector wiring, and BIOS configuration. Safety precautions such as handling components with anti‑static measures and avoiding damage to circuitry are emphasized.
The guide also lists technical specifications, supported CPUs, memory types, expansion slots, and includes reference material for BIOS settings, AGP/PCI configuration, and troubleshooting. This manual is written in Chinese.
| Form factor | 30.5 cm x 24.4 cm |
|---|---|
| L1 cache | 128 KB |
| L2 cache | 512 KB or 256 KB |
| Maximum CPU speed | 1.6 GHz |
| Chipset | NVIDIA nForce 3 150 |
| Memory slots | 3 DDR DIMM slots |
| Supported memory types | DDR400, DDR333, DDR266 |
| Memory bus width | 64‑bit |
| ECC support | Yes, for unbuffered DIMMs |
| Maximum memory | 3 GB |
| AGP slot | 1 slot, supports AGP 8X/4X (1.5 V), compatible with AGP 3.0 |
| PCI slots | 5 slots, 33 MHz, PCI 2.3 compliant |
| SATA ports | 1 |
| USB ports | 1 |
It provides five PCI slots that operate at 33 MHz and are PCI 2.3 compliant.
