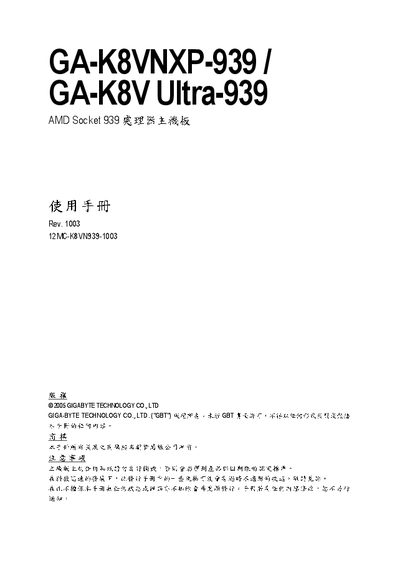

Gigabyte GA-K8VNXP-939 / GA-K8V Ultra-939 Motherboard Manual

GA-K8VNXP-939 / GA-K8V Ultra-939 are two motherboards from GIGABYTE TECHNOLOGY CO., LTD. They use the AMD Athlon™ 64 / 64FX K8 Socket 939 processor and support 2000MHz ~ 3200+ CPUs. They also feature the VIA K8T800 Pro and VIA VT8237 / VT8237R chipsets

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: English
Pages: 96
File format: PDF
File size: 9.4 MB
Published: 06 April, 2012
Updated: 01 October, 2023
Model: ULTRA-939
MD5 checksum: B3F76DA2C25EA02D7EB3334B5BC7635A
PDF: Gigabyte GA-K8VNXP-939 / GA-K8V Ultra-939 Motherboard Manual PDF

About this manual

The GA‑K8VNXP‑939 and GA‑K8V Ultra‑939 are AMD Socket 939 motherboards built around the VIA VT8237 (or VT8237R) chipset. They support AMD Athlon 64/64FX CPUs, DDR memory modules, AGP graphics, IDE and SATA storage, USB ports, and Gigabit Ethernet.

The manual includes a Declaration of Conformity, safety warnings (including a heatsink warning), detailed motherboard layout diagrams, BIOS configuration options, and connector descriptions for AGP, PCI, IDE, SATA, USB, and LAN interfaces.

What's inside

Declaration of Conformity
Safety Warnings
Motherboard Layout
BIOS Features
AGP Configuration
IDE and SATA Interfaces
USB Ports
Network (LAN) Interface
Power Connectors

Specifications

Chipset	VIA VT8237 (VT8237R for Ultra‑939)
AGP slot	AGP 8× (AGP RAT + X48 AGP)
IDE interface	UDMA 3 / ATA 66 / ATA 100 / ATA 133
SATA interface	Serial ATA 1.5 Gb/s
LAN	10/100/1000 Mbit Ethernet

Frequently asked questions

What warning is given about the processor heatsink?

The manual warns never to run the processor without the heatsink properly and firmly attached, stating that permanent damage will result.

What FCC compliance does the motherboard have?

The motherboard conforms to FCC Part 15, Subpart B, Class B Digital Device specifications.
