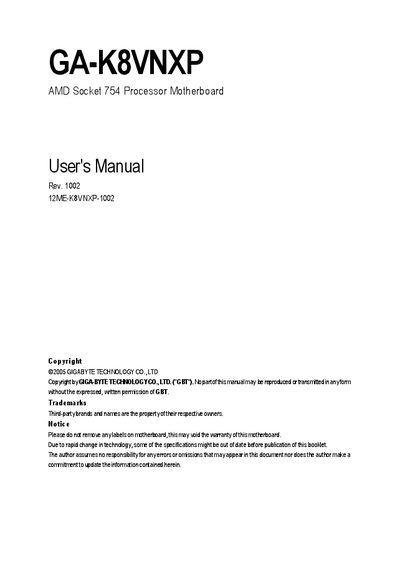

This is a user manual for GA-K8VNXP motherboard, introducing the functions and features of the motherboard.
This manual covers the GA-K8VNXP motherboard, an ATX‑size board (30.5 cm × 24.4 cm) with a VIA K8T800 chipset, supporting AMD Socket 754 processors. It includes safety warnings, hardware installation steps, BIOS configuration, and detailed technical reference data.
The document also lists the included accessories, provides connector and layout diagrams, and offers contact information for Gigabyte support worldwide.
| Form factor | ATX (30.5 cm × 24.4 cm, 4‑layer PCB) |
|---|---|
| CPU socket | AMD Socket 754 for Althlon 64 (K8) |
| Chipset | VIA K8T800 H.T. Bus/AGP/VLINK Controller |
| AGP slot | 1 × AGP 3.0 slot, 8X/4X mode, 533 MHz |
| PCI slots | 5 × PCI slots (33 MHz, PCI 2.2 compliant) |
| IDE controllers | 2 × IDE controllers (IDE1, IDE2) with PIO, Bus Master DMA, ATA100/133; IDE3/IDE4 compatible with RAID |
| Integrated RAID | GigaRAID IT8212F |
It uses an AMD Socket 754 for Althlon 64 (K8) processors.
The motherboard is built around the VIA K8T800 H.T. Bus/AGP/VLINK Controller chipset.
It has one AGP 3.0 slot that supports 8X/4X mode at 533 MHz.
