GA-8I865PEM-775 is a motherboard from GIGABYTE TECHNOLOGY CO., LTD with Intel 865PE MCH chipset, supporting Intel® Pentium® 4 LGA775 processors and equipped with 4 DDR DIMM slots and 2 PCI-E x16 slots.

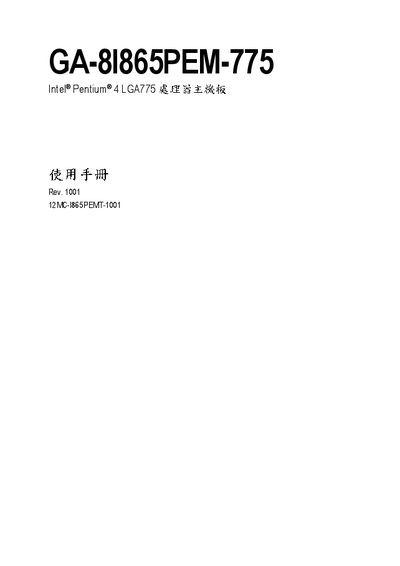

This manual covers safety and regulatory information for the Gigabyte GA-8I865PEM-775 motherboard, including FCC and CE compliance, declaration of conformity, and handling guidelines. It also lists the supported hardware standards such as LGA775 socket, DDR memory types, and AGP graphics interface.
The document details BIOS configuration options, power‑management settings, peripheral connections (USB, SATA, PCI, etc.), and troubleshooting steps. It includes step‑by‑step instructions for entering the BIOS, adjusting voltage/frequency controls, and saving or exiting the setup utility.
| CPU Socket | LGA775 |
|---|---|
| Supported CPU | Intel® Pentium® 4 |
| Memory Type | DDR 400/333/266 MHz DIMM (dual channel) |
| Graphics Interface | AGP 8x/4x |
| USB Ports | 8 |
| Serial ATA Ports | 2 |
| PCI Bus Speed | 33 MHz |
It uses an LGA775 socket for Intel Pentium 4 processors.
The board provides eight USB ports.
The motherboard supports DDR memory at 400, 333, and 266 MHz in dual‑channel DIMM modules.
It includes an AGP slot supporting 8x and 4x speeds.
