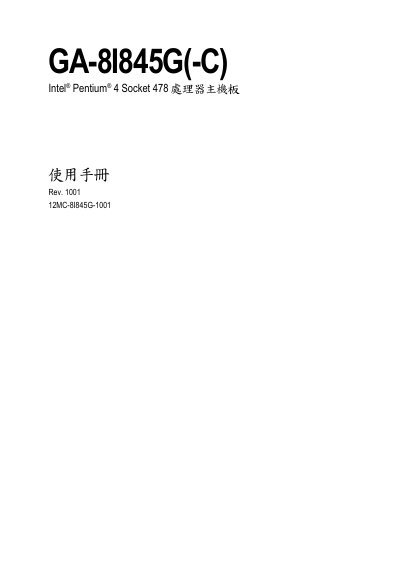

This document is an introduction to the GA-8I845G(-C) Intel® Pentium® 4 Socket 478 Rev. 1001 12MC-8I845G-1001 motherboard. The motherboard features a Socket 478 interface and supports Intel® Pentium® 4 processors. It is equipped with the Intel 845G chipset and offers integrated audio, network, and USB interfaces.
This document covers the features, installation steps, and configuration options for the Gigabyte GA-8I845G(-C) ATX motherboard. It includes detailed BIOS setup instructions, hardware layout diagrams, and troubleshooting tips.
The manual also lists the technical specifications of the board, such as supported CPUs, memory types, expansion slots, and peripheral interfaces, helping users to correctly assemble and optimize their system.
| CPU Socket | Intel® Pentium® 4 Socket 478 |
|---|---|
| Chipset | Intel 845G |
| Memory | 3 DDR DIMM slots, up to 2 GB, DDR266/200 |
| Expansion Slots | 5 PCI slots, 1 AGP slot |
| IDE Interfaces | 2 IDE (UDMA 33/ATA 66/ATA 100) ports, 4 IDE total |
| USB Ports | 6 USB 2.0/1.1 ports |
| LAN | RTL8100C 10/100 Mbit Ethernet |
| Audio Codec | C‑Media 9761A AC97 CODEC |
| BIOS | Award BIOS with Q‑Flash |
It uses an Intel® Pentium® 4 Socket 478.
The motherboard provides six USB 2.0/1.1 ports.
The board is based on the Intel 845G chipset.
It uses an Award BIOS with Q‑Flash support.
