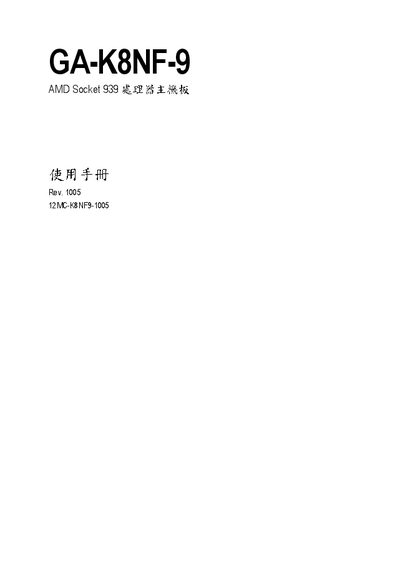

Gigabyte GA-K8NF-9 AMD Socket 939 Motherboard User Manual

GA-K8NF-9 is a motherboard with AMD Socket 939.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 80
File format: PDF
File size: 8.4 MB
Published: 06 April, 2012
Updated: 30 September, 2023
Model: GA-K8NF-9
MD5 checksum: 5DA8436C62447017A1357ABA01D8FA5E
PDF: Gigabyte GA-K8NF-9 AMD Socket 939 Motherboard User Manual PDF

About this manual

This manual covers the hardware layout and installation steps for the Gigabyte GA-K8NF-9 motherboard, including CPU mounting, heatsink installation, and connector placement. It also details BIOS configuration options, driver installation procedures, and system setup.

Additional sections describe safety and compliance information, audio and video connector usage, PCI‑Express slot configuration, and contact details for global technical support. This manual is written in Chinese.

What's inside

Installation
BIOS Settings
Driver Installation
Hardware Specifications
Audio Configuration
PCI Express Configuration
Troubleshooting
Safety and Compliance
Contact Information

Specifications

CPU Socket	Socket 939
Supported Memory	DDR 400/333/266 DIMM
PCI Express Slots	1 x16, 2 x1
Additional PCI Express Slots	2 x1 ports
IDE Channels	IDE Channels
Audio Connectors	AUDIO1, AUDIO2
SPDIF Outputs	SPDIF 0, SPDIF 1
SPDIF Outputs	SPDIF 1

Frequently asked questions

What CPU socket does the GA-K8NF-9 motherboard use?

It uses an AMD Socket 939.

How many PCI Express slots are available on the GA-K8NF-9?

One PCI Express x16 slot and two PCI Express x1 ports.

What types of memory are supported?

The board supports DDR 400, DDR 333, and DDR 266 DIMM modules.

Which audio connectors are provided on the motherboard?

It provides AUDIO1, AUDIO2, and two SPDIF outputs (0 and 1).
