infineon Addendum for PCN-Datasheet 2004-018-A: BTS 5240 G Manual(1)

This document is an addendum and datasheet for BTS 5240 G Smart High-Side Power Switch, describing the features and characteristics of the product.

Brand: Infineon
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 18
File format: PDF
File size: 418 KB
Published: 06 April, 2012
Updated: 28 September, 2023
Model: 2004-018-A
MD5 checksum: 298C3239D47A5E5C6E2DB5DB4DC2077A
PDF: infineon Addendum for PCN-Datasheet 2004-018-A: BTS 5240 G Manual(1) PDF

About this manual

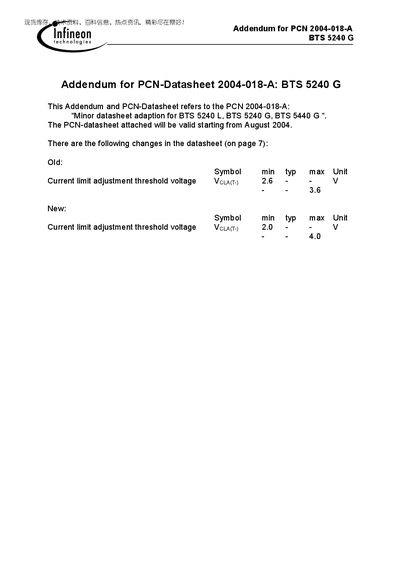

The Infineon BTS 5240G is a smart high‑side power switch built in N‑channel vertical MOSFET technology. This addendum revises the original PCN‑2004‑018‑A datasheet, correcting several parameter values such as the current‑limit adjustment threshold voltage.

The document provides detailed electrical characteristics, pin definitions, protection functions, and package information for the two‑channel device, along with updated graphs and timing diagrams.

What's inside

Product Summary
General Description
Application
Protection Functions
Diagnostic Function
Functional Diagram
Pin Definition and Function
Maximum Ratings
Electrical Characteristics
Package and Ordering Code

Specifications

Operating voltage Vbb(on)	45…28 V
Current limit adjustment threshold voltage VoLA(T‑)	2.0 V
Nominal load current (nom)	5.9 A
On‑state resistance Ron (single channel, 25 °C, 5 A)	21 mΩ

Frequently asked questions

What is the maximum supply voltage for full short‑circuit protection?

The maximum supply voltage is specified as 45 V to 28 V (Vbb).

Download PDF (418 KB)
