The BTS 5240 L is a dual-channel smart high-side power switch with a 25mΩ on-state resistance and a 10A low current limit. It is suitable for a variety of resistive, inductive and capacitive loads.

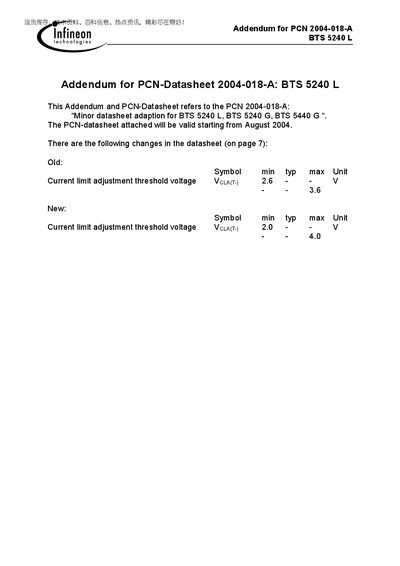

This Infineon addendum revises the original BTS 5240L datasheet (PCN‑2004‑018‑A). It details changes to the current‑limit adjustment threshold voltage and updates several electrical parameters.
The document includes functional diagrams, pin definitions, maximum ratings, electrical characteristics, protection functions, and ordering information for the BTS 5240L high‑side power switch.
| Current limit adjustment threshold voltage (low level) | 2.0 V |
|---|---|
| Current limit adjustment threshold voltage (high level) | 4.0 V |
| On‑state resistance (Ron) per channel | 25 mΩ |
| Package ordering code | Q67060‑S6135 |
The low‑level threshold is 2.0 V.
The ordering code is Q67060‑S6135.
