This document is about the directory and instructions for using the C.A880T D3 V16, C.A780H D3 V16, and C.A780T D3 V16 products. The document covers topics such as hardware installation, driver installation instructions, and BIOS settings.

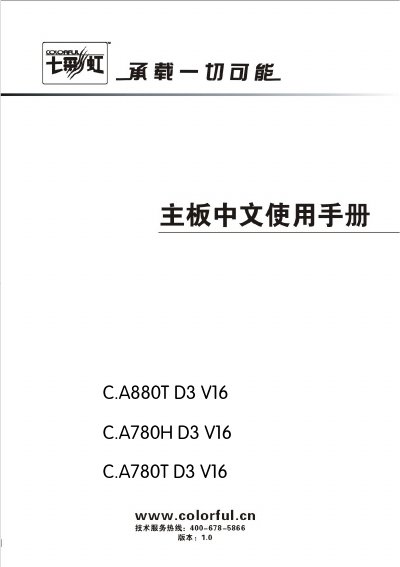

This manual introduces the Colorful C.A880T D3 V16, C.A780H D3 V16 and C.A780T D3 V16 motherboards, provides step‑by‑step hardware installation instructions, driver installation guidance and detailed BIOS configuration procedures. It also contains safety notices, warranty information and contact details for technical support.
The document lists the main technical specifications such as chipset, CPU socket, memory support, expansion slots, storage interfaces, audio, network and USB ports. Appendices cover BIOS flashing, jumper settings and troubleshooting codes, helping users and technicians maintain the board. This manual is written in Chinese.
| CPU Socket | AMD Socket AM3 |
|---|---|
| Memory | 2 DDR3 slots, dual‑channel 1066/1333 MHz |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 1 × PCI |
| Storage Interfaces | 1 × IDE, 4 × SATA II |
| Audio | Integrated 6‑channel HD audio controller |
| Network | Integrated 10/100 Mbps Ethernet (C.A880T D3 V16 uses gigabit) |
| USB Ports | 8 × USB 2.0 (including 2 internal headers) |
The board supports AMD Socket AM3 processors.
It provides eight USB 2.0 ports, two of which are internal headers.
The C.A880T D3 V16 version includes an integrated gigabit Ethernet port, while other models have 10/100 Mbps.
