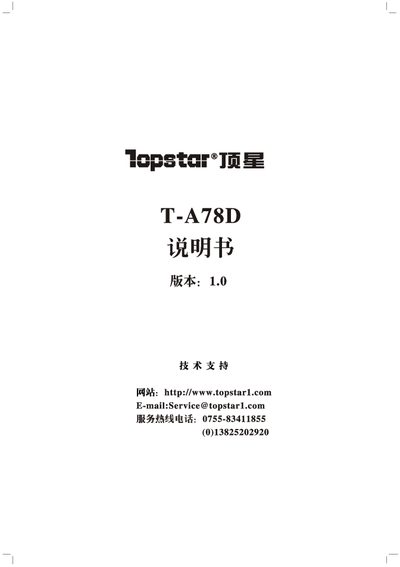

Topstar T-A78D Motherboard User Manual

The document is a user manual for a product, which introduces the various interfaces and functions of the product.

Brand: Topstar
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 72
File format: PDF
File size: 26.2 MB
Published: 05 April, 2012
Updated: 29 September, 2023
MD5 checksum: 80B02AD25B083B02B740E51CBC220E1F
PDF: Topstar T-A78D Motherboard User Manual PDF

About this manual

This manual provides an overview of the Topstar T-A78D motherboard, including its AMD RX780+SB600 chipset, supported CPUs, memory types, and available interfaces. It also contains safety guidelines and warranty information.

The document details step‑by‑step hardware installation, driver setup, BIOS configuration, and includes an appendix with contact information for Topstar service centers across China. This manual is written in Chinese.

What's inside

Motherboard Features
Hardware Installation Steps
CPU Installation
Memory Installation
Jumpers Settings
Interfaces and Connectors
Driver Installation
BIOS Settings and Upgrade
Appendix

Specifications

Chipset	AMD RX780+SB600
CPU Socket	AMD Socket 940
Supported CPUs	Athlon64FX/64X2/64, AM2+ processors
Memory Type	DDR2 400/533/667/800
Maximum Memory Capacity	8 GB
USB Support	USB 2.0 (up to 480 Mb/s)
PCI Slots	2 × 32‑bit PCI Bus Master
IDE/ATA Interface	ATA133/100/66/33
RJ45 Ethernet Port	1

Frequently asked questions

What chipset does the Topstar T-A78D motherboard use?

It uses the AMD RX780+SB600 chipset.

Which CPU sockets are supported by the T-A78D motherboard?

It supports AMD Socket 940 for Athlon64FX/64X2/64 and AM2+ processors.

What is the maximum memory capacity for this motherboard?

The board can accommodate up to 8 GB of DDR2 memory.
