Topstar T-N570G Motherboard User Manual

This is a PCB schematic for NVIDIA 570LI SLI motherboard

Brand: Topstar
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 72
File format: PDF
File size: 24.5 MB
Published: 06 April, 2012
Updated: 30 September, 2023
MD5 checksum: EAC25145786608B5656A0F9C3C1D1CEB
PDF: Topstar T-N570G Motherboard User Manual PDF

About this manual

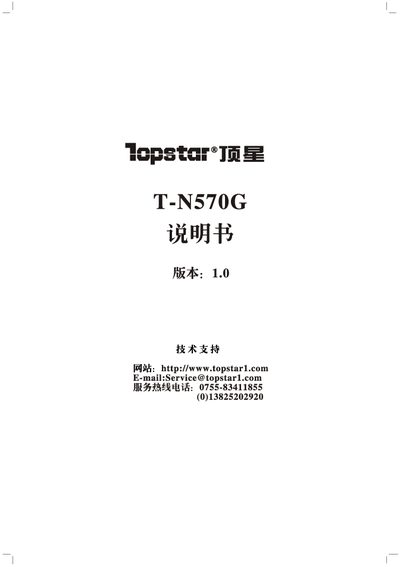

This manual describes the features and specifications of the Topstar T‑N570G motherboard, including supported CPUs, memory types, expansion slots and integrated interfaces. It also outlines safety precautions and proper handling before installation.

The document contains detailed installation instructions, BIOS setup options, driver installation procedures, a list of required tools, and contact information for regional service centers. This manual is written in Chinese.

What's inside

Motherboard Features
Installation Guide
BIOS Settings
Driver Installation
Included Tools
Safety Precautions
Contact Information

Specifications

CPU Socket Support	Socket 940 for Sempron, Athlon/X2/FX/AM2+/AM3 series
Maximum Memory Capacity	8 GB
IDE/ATA Interface	ATA133/100/66/33
USB Ports	4 × USB 2.0 (max 480 Mb/s)
Audio Output	SPDIF_OUT
Power Management	ACPI 1.0b
