This is a motherboard circuit diagram, which contains all the components on the motherboard and the connection relationship

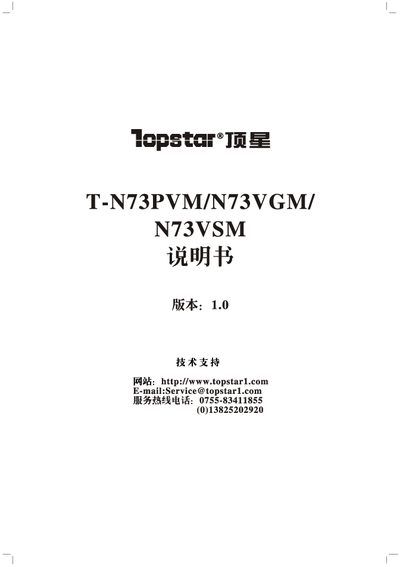

This manual describes the features and specifications of the Topstar T‑N73PVM motherboard, including supported CPUs, memory types, expansion slots, and integrated graphics. It also outlines safety precautions, warranty statements, and contact information for Topstar service centers.
The document contains detailed installation guidance, BIOS configuration procedures, and a list of required tools. Appendices provide regional service contacts and additional reference tables for hardware configuration. This manual is written in Chinese.
| Supported CPUs | Intel LGA775 Pentium 4, Pentium D, Pentium E, Core2 Duo, Core2 Extreme, Conroe‑L, Celeron |
|---|---|
| Chipset | NVIDIA MCP73PY |
| Front‑Side Bus | 533 MHz / 800 MHz / 1066 MHz / 1333 MHz |
| Memory Type | DDR2 533/667/800 |
| Maximum Memory Capacity | 4 GB |
| USB Interfaces | USB 2.0 and USB 1.1 |
| PCI Express Slots | 1 × PCIe 16×, 1 × PCIe 1×, 2 × 32‑bit PCI Bus Master |
| Integrated Graphics | GeForce 7 series |
| Power Management | ACPI 1.0b |
It supports Intel LGA775 processors including Pentium 4, Pentium D, Pentium E, Core2 Duo, Core2 Extreme, Conroe‑L, and Celeron.
The motherboard can accommodate up to 4 GB of DDR2 memory.
Both USB 2.0 and USB 1.1 ports are available.
Yes, it features an NVIDIA MCP73PY chipset with integrated GeForce 7 series graphics.
