BFP93A / BFP93AW is a silicon NPN planar RF transistor produced by Vishay. It has the characteristics of high power gain, low noise figure and high transition frequency. It can be used in RF amplifiers.

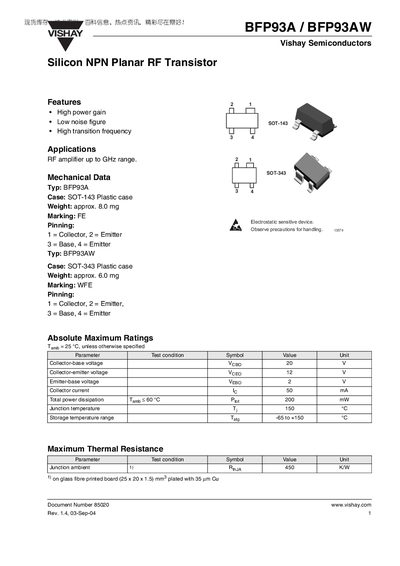

The BFP93A and BFP93AW are silicon NPN planar RF transistors from Vishay, offering high power gain, low noise figure and high transition frequency. They are supplied in SOT‑143 (BFP93A) and SOT‑343 (BFP93AW) plastic packages and are intended for RF amplifier applications up to the GHz range.
Key specifications include a collector‑base voltage of 20 V, collector‑emitter voltage of 12 V, emitter‑base voltage of 2 V, maximum collector current of 50 mA, and a power dissipation rating of 200 mW. The devices achieve a transition frequency of up to 6 GHz and have low capacitance values suitable for high‑frequency designs.
| Collector‑base voltage (Vcbo) | 20 V |
|---|---|
| Collector‑emitter voltage (Vceo) | 12 V |
| Emitter‑base voltage (Vebo) | 2 V |
| Maximum collector current (Ic) | 50 mA |
| Maximum power dissipation (Prot) | 200 mW |
| Transition frequency (ft) | 6 GHz |
| Package (BFP93A) | SOT‑143 plastic case |
| Package (BFP93AW) | SOT‑343 plastic case |
| Weight (BFP93A) | ≈8.0 mg |
| Weight (BFP93AW) | ≈6.0 mg |
The maximum collector current is 50 mA.
The BFP93A is supplied in an SOT‑143 plastic case.
They have a transition frequency of up to 6 GHz.
The devices can dissipate up to 200 mW.
