BFP92A/BFP92AW is a NPN Planar RF Transistor launched by Vishay Telefunken. It has the characteristics of high power gain, low noise figure and high transition frequency. It is used in RF amplifier and other occasions.

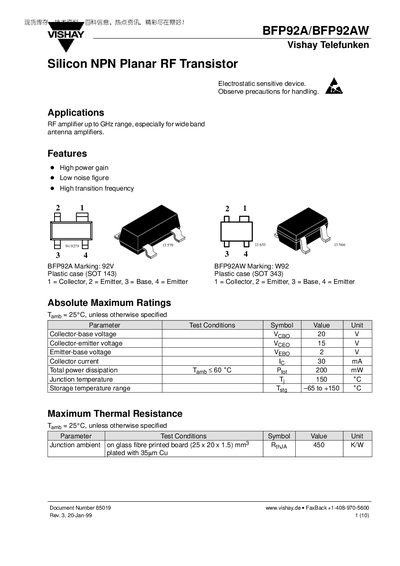

The Vishay BFP92A and BFP92AW are silicon NPN planar RF transistors designed for high‑frequency applications such as RF amplifiers up to the GHz range. The document provides electrical characteristics, maximum ratings, S‑parameter data, typical performance curves, and mechanical dimensions.
Key sections include applications, features, absolute maximum ratings, DC and AC characteristics, S‑parameters, typical characteristic curves, package dimensions, and an environmental policy statement. All parameters are given for a standard test condition of 25 °C unless otherwise noted.
| Collector‑base voltage (Vcbo) | 20 V |
|---|---|
| Collector‑emitter voltage (Vceo) | 15 V |
| Emitter‑base voltage (Vebo) | 2 V |
| Collector current (Ic) | 30 mA |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -65 °C to +150 °C |
The maximum collector current is 30 mA.
Yes, Vishay certifies that the BFP92A/BFP92AW are manufactured without ozone‑depleting substances.
